Classic Airframes 1/48 IMAM Ro.37bis
Reconnaissance Plane
by Jean Barby


Click the STORMO! Eagle to
return to the Gallery


This aeroplane appeared in 1934. It was a reconnaissance aeroplane and for many years served as standard equipment in observation units. During the war, and particularly on the African front, the aeroplane was used in other roles, including tactical support and fighter duty. The biplane had a composite structure of wood and metal. It was a two-seater armed with one or two fixed machine guns and a movable gun in the rear cockpit. Two different engines were used in the production models: the 550 hp Fiat A.30 RA 12-cylinder V engine in the first version of the plane; and then the 560 hp Piaggio P.IX radial in the 37bis model.

The aeroplane first saw operational duty during the Spanish Civil War, and during the Second World War the Ro 37 saw duty on nearly all fronts except for Russia and the English Channel. The plane was also exported to Afghanistan, Ecuador, Hungary and Uruguay 1936-38.











Construction

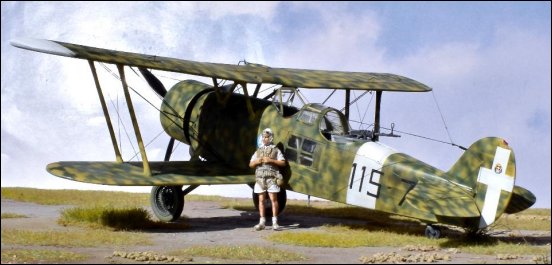

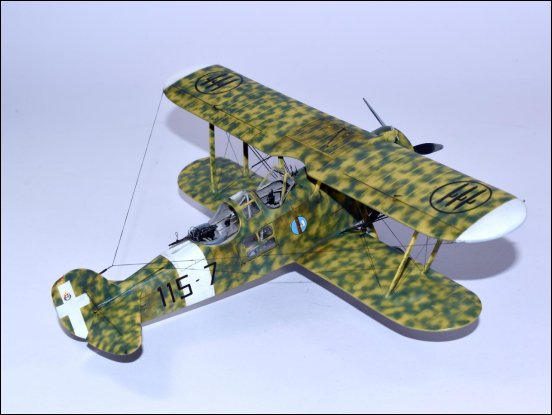

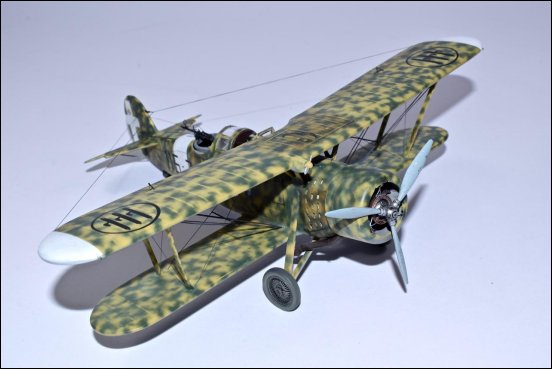

This is the Classic Airframes 1/48 Romeo Ro. 37bis - CA 469

Technical Data

Aircraft: Meridionali Ro. 37 bis
Manufacturer: S.A. Industrie Meccaniche & Aerondutiche Meridionali (I.M.A.M.)
Type: Reconnaissance
Year: 1935
Engine: Piaggio P.IX, air-cooled radial, 560hp
Wingspan: 36 ft 4 in (11.08m)
Length: 28 ft 3 in (8.62 m)
Height: 9 ft 9 in (2.95 m)
Weight: 5,269 lb (2,390 kg) (Loaded)
Maximum Speed: 202 mph (325 km/h)
Ceiling: 22,000 ft (6,700 m)
Range: 726 miles (1,168 km)
Armament: 2-3 machine guns
Crew: 2
