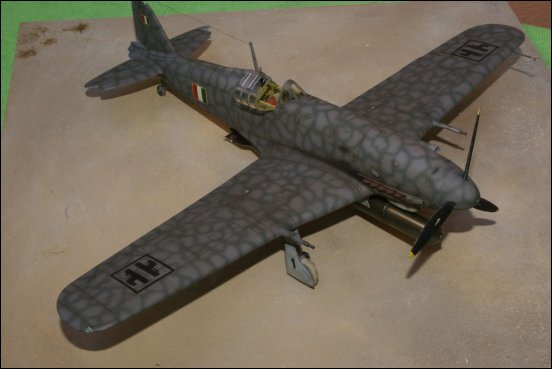

Pacific Coast Models 1/32 Fiat G.55S
Silurante (Torpedo Bomber)
by Paolo Rossi Paccani

Click the STORMO! Eagle to
return to the Gallery

There were about 30 of these aeroplanes in service in the Italian Air Force at the time of the 1943 armistice. There were 150 in the fighter units of the ANR after that date, and they remained in service until the end of hostilities in 1945. This was the operational career of the Fiat G.55, one of the finest Italian combat aeroplanes of the war. The aeroplane was the result of the last desperate production effort of the Italian aviation industry during the war. It was powerful, fast, and sturdy, an unbeatable interceptor at high altitude. In dog fights carried out in the north during the last year of the war, the G.55 was pitted against the best British and American aeroplanes of the time, such as Spitfires, Mustangs, Thunderbolts, and Lightnings, and proved to be no easy adversary.

The Fiat G.55 appeared at the same time as the other two 'Series 5' fighters, the Macchi MC.205 and the Reggiane Re 2005. Comparative tests were made, but it was hard to choose between such well-matched aircraft however the G.55 was judged to be the best over-all, but the ministerial decision was not impartial. Instead of concentrating production on one of these aeroplanes, it was decided to build all three. Thus 250 Macchi MC.205s were ordered, along with 600 Fiat G.55s and 750 Caproni-Reggiane Re 2005s. It should be pointed out that although the British had one competitive aircraft of this type in early 1943, namely the Spitfire, the Italians had produced three outstanding designs, equal and superior to the Spitfire in many cases. And it should also be pointed out that the Supermarine designs (Spitfire) were based on the Macchi Schneider Trophy Racer M.39.

The Fiat was a good deal faster than the Macchi MC.205 above 23,000 ft (7,010 m). It was more modern, and more powerfully armed, but it was slower and less manoeuvrable than the Re 2005, although it was much sturdier. The Fiat G.55 was an all metal single-seat low-wing monoplane, and the under-carriage was fully retractable. Power was provided by a 1,475 hp Daimler Benz DB.605 engine driving a three-blade metal propeller with variable pitch. Armament consisted of two 12.7 mm machine guns in the engine housing, synchronized to fire through the propeller disc; two 20 mm Mauser cannons in the wings; and a third cannon firing through the propeller hub.

The aeroplane became operational in June 1943 with the 353a Sq. This unit did not take part in any major battle. The situation was different in the north after the 1943 armistice. About 20 aeroplanes were taken over by the ANR, and the rest of the aeroplanes that were produced went into fighter squadrons where they saw service until the end of the war.

In early 1943 a German test team was sent to Guidonia to evaluate the new generation of Italian aircraft. Among the fighters tested by the Luftwafee pilots, led by Oberst Petersen of the Rechlin Erprobungsstelle, the G.55 was judged to be "Excellent". After listening to recommendations from Milch, Galland and Petersen the Future Aviation Programs meeting held by Goering on 22 Feburary 1943 voted to build the Fiat G.55 in Germany. Milch a strong proponent of the plan hoped to have the G.55 available for the Luftwaffe within a year, and aimed at building a more powerful variant powered by the new 1,800hp DB.603 (which could not be installed in the Bf.109). The plan was eventually cancelled after the Italian Armistice.

Production of the G.55 was resumed after the war and about 100 were sold to Argentina, Egypt and Syria. Sixteen aircraft were delivered to the Italian Air Force early in 1948. Variant models included the dual seater G.55B trainer and the G.55S torpedo carrier. The G.55S was developed in 1944, but the project was abandoned after a few test flights.

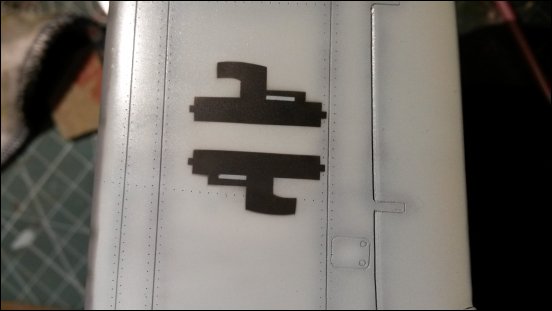

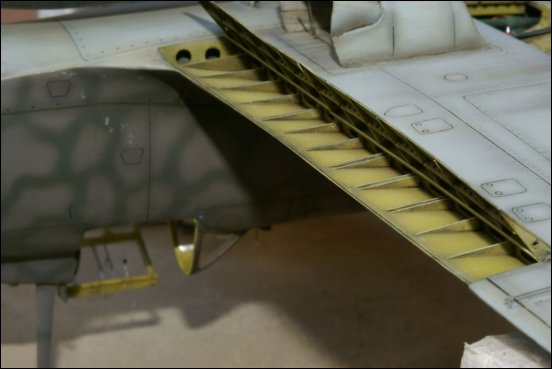

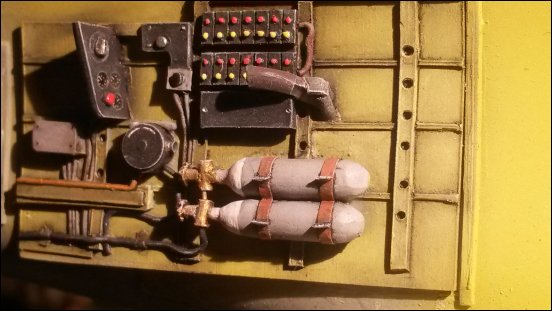

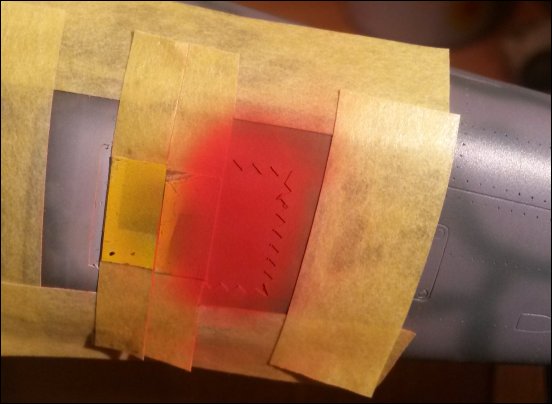

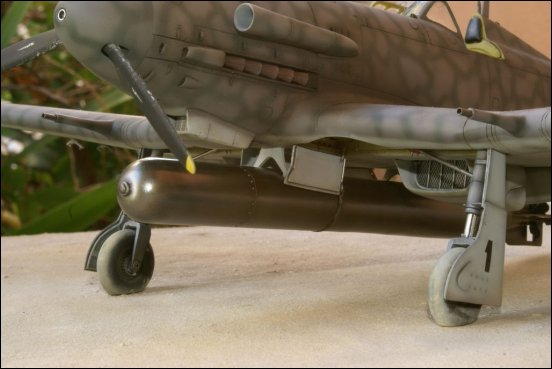

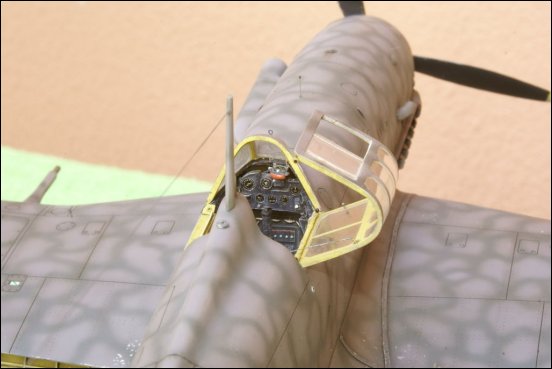

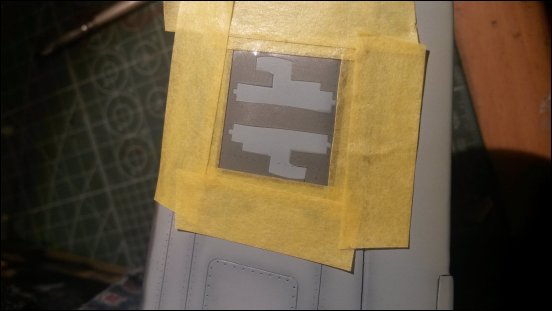

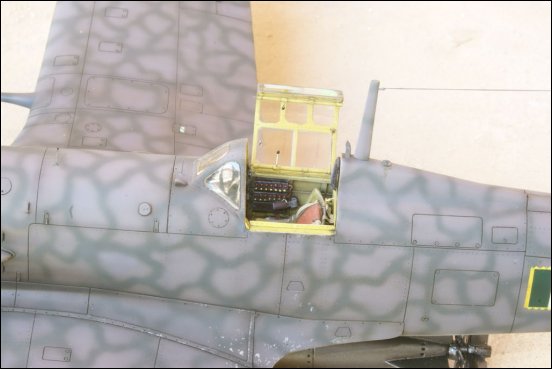

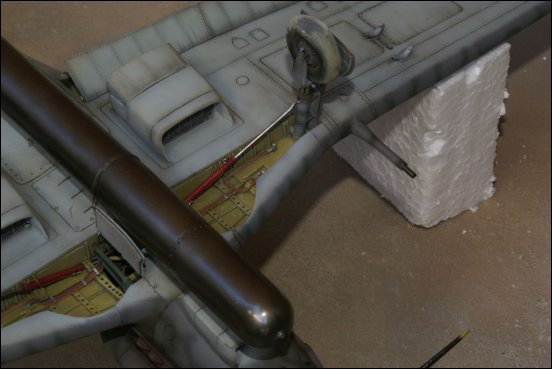

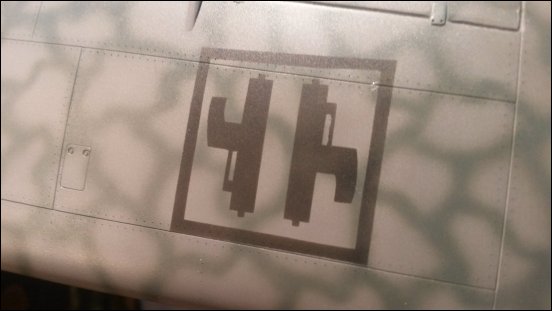

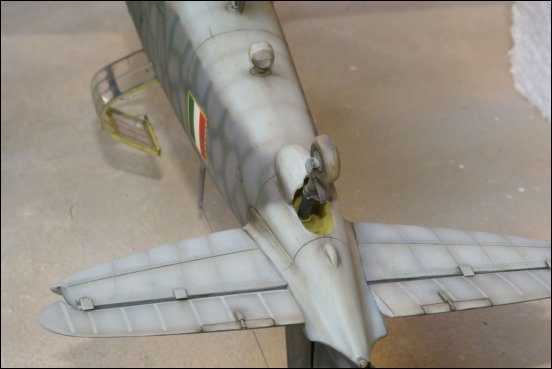

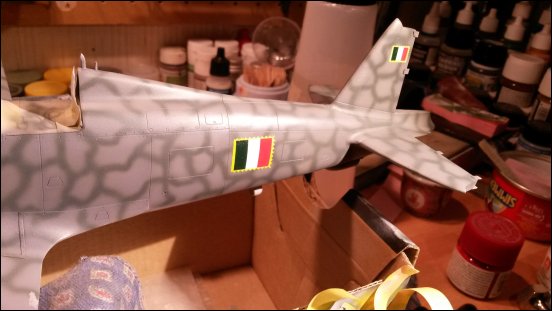

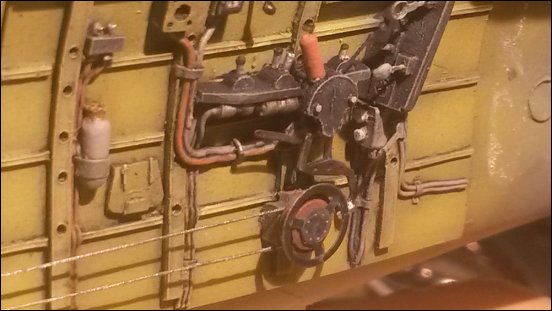

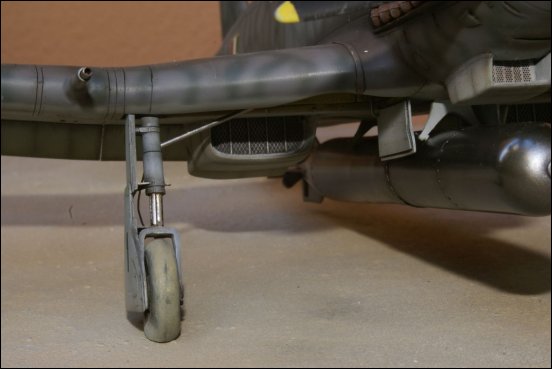

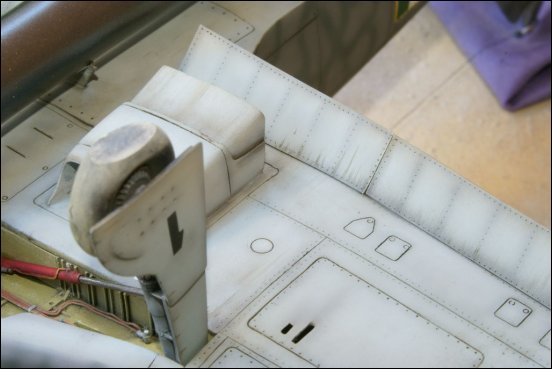

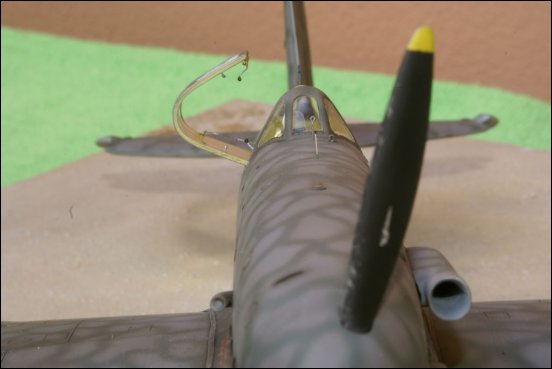

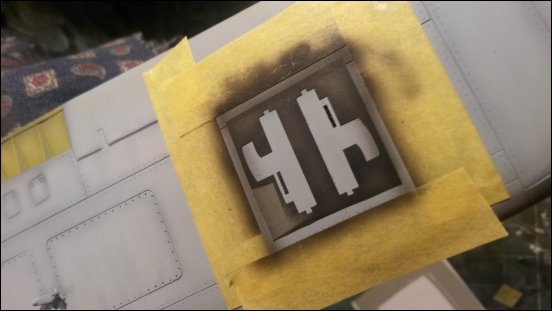

Construction photos:

Technical Data
Aircraft: Fiat G.55 Serie I
Manufacturer: Fiat S.A.
Type: Fighter
Year: 1943
Engine: Damiler Benz DB 605A-1, 12-cylinder V, liquid-cooled 1,475hp
Wingspan: 38 ft 10 1/2 in (11.85 m)
Length: 30 ft 9 in (9.37 m)
Height: 12 ft 4 in (3.77 m)
Weight: 8,200 lb (3,720 kg) (Loaded)
Maximum Speed: 385 mph (620 km/h) at 24,300 ft (7,400 m)
Ceiling: 41,700 ft (12,700 m)
Range: 1,025 miles (1,650 km)
Armament: 2 x 12.7mm (0.5 in) SAFAT machine guns, 3 x 20 mm cannons
Crew: 1
