Revell 1/48 Messerschmitt Bf.109 G10/U4/R3
Italian Ace - Dino Forlani
by Brett Green


Click the STORMO! Eagle to
return to the Gallery


By 1944 the Bf 109G was overweight and slow. In the hands of the legendary "experten" it was still capable of besting its opponents, but the average Luftwaffe pilot was simply incapable of accomplishing this.

In an attempt to increase the speed of the 109G, the DB 605D engine was developed. Similar to the DB 605AS, the DB 605D's supercharger was increased in size, and again, the compression ratio was increased as well as the displacement. The MW 50 boost was retained, and as a result, the G-10 was the fastest of the entire G series.

Standard equipment for the G-10 was the FuG 25a IFF, a OF loop, the tall wooden tail, the erla haube canopy, and the FuG 16ZY with the Moranne mast under the left wing. The DB 605D employed the refined cowling, enlarged supercharger intake, deeper oil cooler, and wider propeller blades all of which appeared on the G-14AS. One further difference in the appearance of the G-10 was the addition of two bulges on either side of the lower cowling resulting from enlarged oil sumps and camshaft covers.

Some production models of the G-10 received wings with the normal size wheel well bulges and tires of the G-6/14 type. These aircraft also had the long shaft, fixed tailwheel and no external trim tabs on the rudder. The extended length tailwheel was another attempt to help the pilot see over the cowl and give a better angle of attack during take-off. Other G-10 aircraft received the larger, wider main wheels with the wings having large uppersurface rectangular wheel well bulges. These aircraft had two external, fixed rudder trim tabs and the normal, short fixed tailwheels. The manuals stated that these G-10s were to be fitted with the extended length tailwheels at field modification centers and many were. The G-10/U4 incorporated a 30 mm/1.18 MK 108 Motorkanone engine cannon. The R3 Rustsatze conversion allowed for a 300 liter droptank to be carried underneath the fuselage.

The G-10 was issued to units in early fall, 1944, coinciding with a slight resurgence of the Luftwaffe day fighter units. More aircraft were produced in November, 1944 than at any time during the war, many of them being Bf 109s. However, a fuel shorrtage and poorly trained pilots combined to prevent any dramatic reversal of fortune. Units known to have operated the G-10 are the Italian ANR Io and IIo Gruppo Caccia, Luftwaffe JG 1, JG 3, JG 4, JG 5, JG 6, JG 11, JG 27, JG 52, JG 53, JG 300, some Hungarian and Croatian units.









Construction

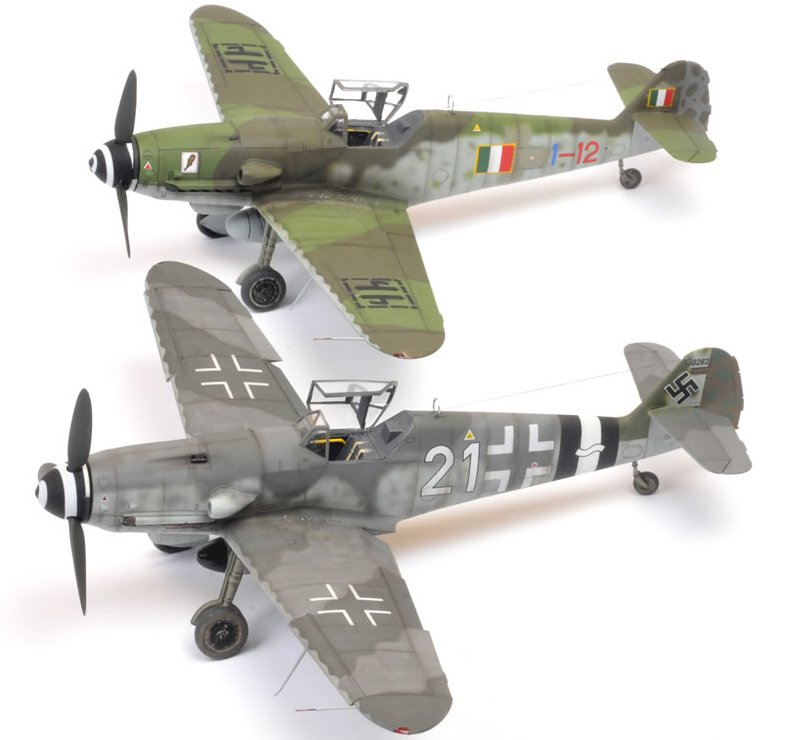

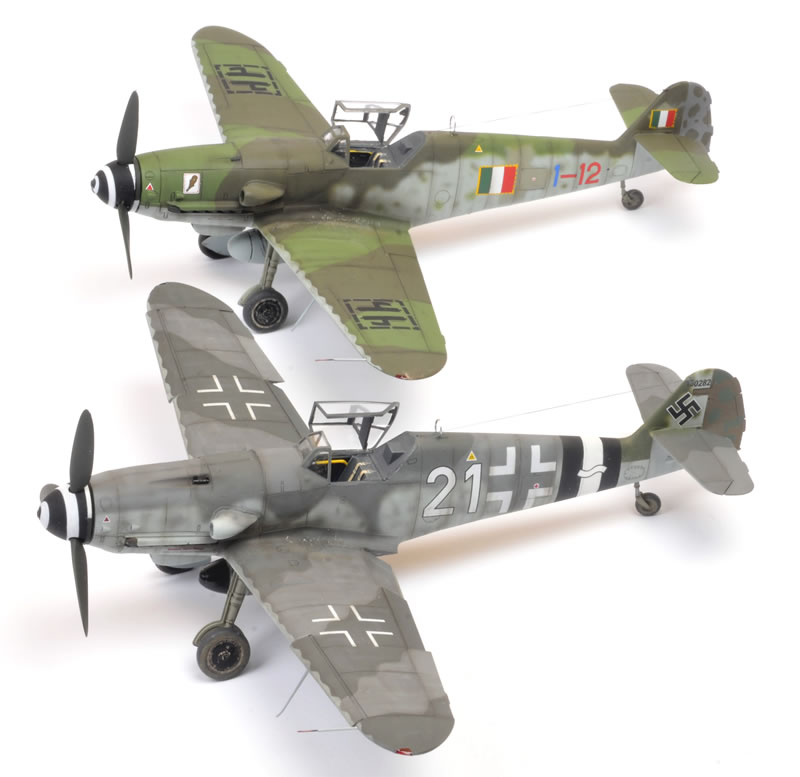

At the same time as I was building the new Eduard 1/48 scale Messerschmitt Bf 109 G-10, I was also building the 40-year-old Revell kit.

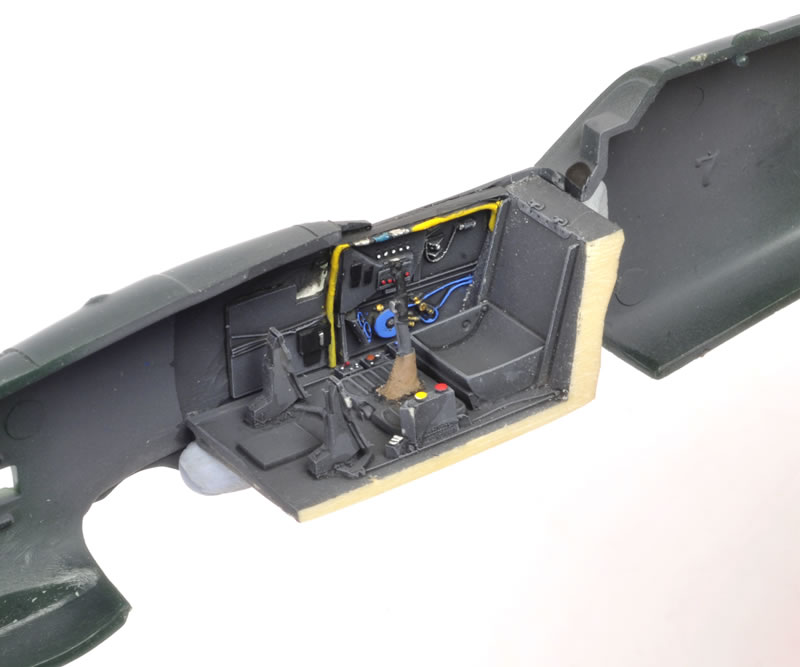

The Revell kit has had a bit of extra work done to it including an old Hawkeye cockpit and a spare tall tail wheel from an Eduard Bf 109 G-4 kit. All those extra Eduard parts really do come in handy!

The DF loop is a small staple from a Tamiya plastic bag bent to shape. The FuG 25 antenna is a length of copper rod and the pitot tube is cut from an industrial light filment. EZ Line was used for the antenna wire.

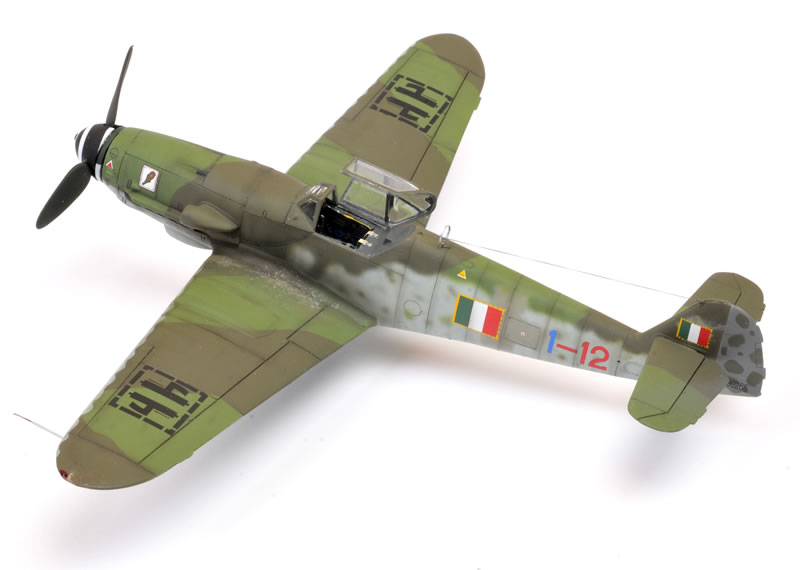

The colourful paint job is mainly Gunze-Sangyo acrylics and Mr Color lacquer paints.

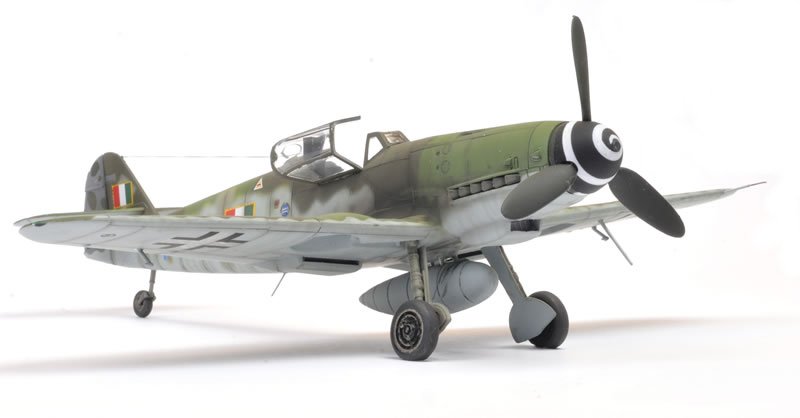

Stormo decals used - Italian Bf.109 Aces Part III - 48003. Bf.109 G-10/U4/R3, W.Nr. 490266, 1a Squadriglia, Io Gruppo Caccia, Lonate Pozzolo, March 1945 flown by W/O Dino Forlani; 7 individual victories claimed.



I am writing this one up in detail for Military Illustrated Modeller magazine - Issue 93. This article first appeared in Hyperscale 25 September, 2018.



Technical Data

Aircraft: Messerschmitt Bf.109 G10
Manufacturer: Messerschmitt A. G.
Type: Fighter
Year: 1944
Engine: Damiler Benz DB 605D, 12-cylinder V, liquid-cooled 2,000hp
Wingspan: 32ft 8 ½ in (9.95m)
Length: 29ft (8.84m)
Height: 8ft 2 ½ in (2.49m)
Weight: 7,475lb (3,386 kg) (Loaded)
Maximum Speed: 452mph (727km/h) at 19,685ft (6,000m)
Ceiling: 41,000ft (12,500m)
Range: 356miles (573km)
Armament: 2 x 15mm cannons, 1 x 30mm cannon
Crew: 1
