SM 79 Classic Airframe 1/48

[Icepol]

Hello everyone!
Today I would like to present another work of mine concerning Savoia Marchetti s79 in bomber version. This will be a very long WIP (work in progress) full of photos .... I hope not to bore anyone!
The starting box will be the Classic Airframe in 1/48 and the kit will be extensively detailed to make it in my style.

This is the boxart



and these are the plastics

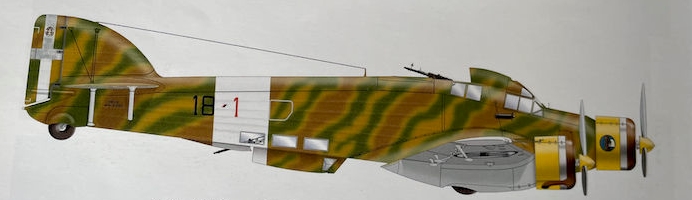

The aircraft will be a Siai S.79 of the 18th squadron, 27th group, 8th wing B.T. near Martuba in May 41



let's begin:

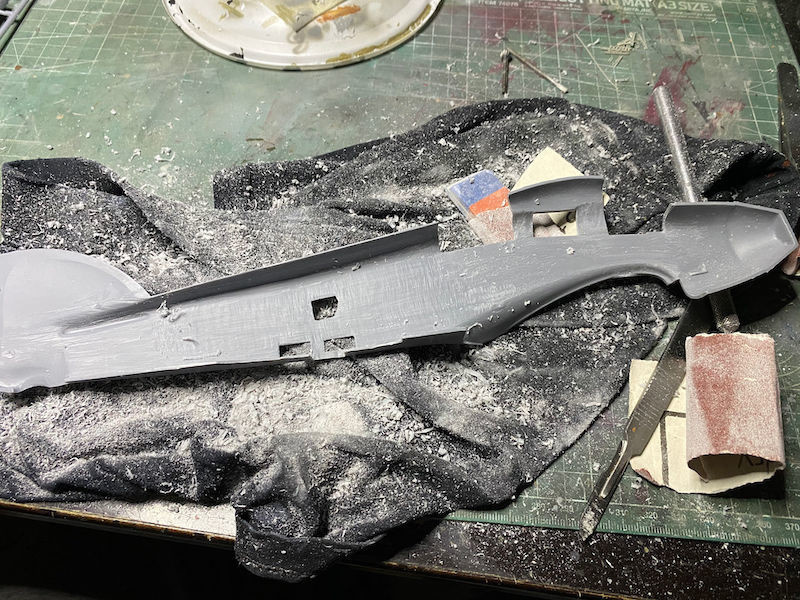

first of all I began to sand the fuselages to thin the plastics, the aim is to reproduce the entire internal structure through the use of rods with a section of 0.88 and 0.50 mm



here you can see the section difference







To complete everything I opened the tiles of the machine gunner's position, the upper bomb compartment, the entrance door for the crew and the side windows for the weapons in the fuselage.

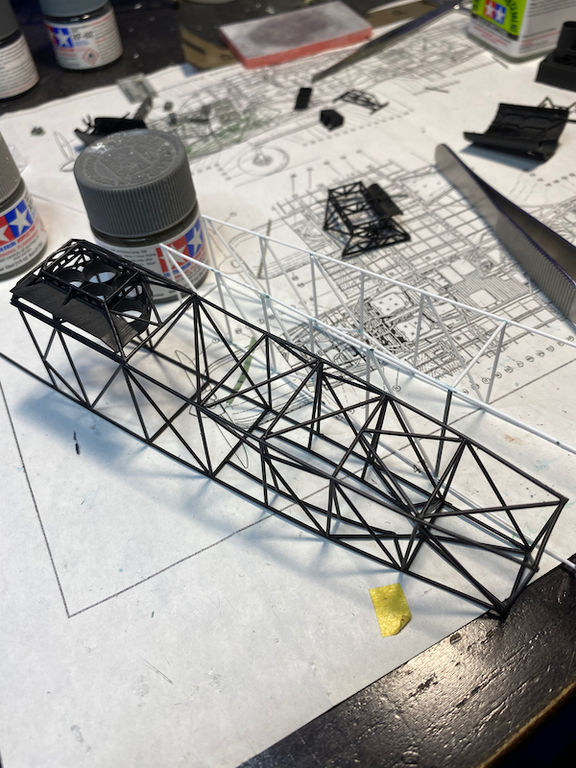

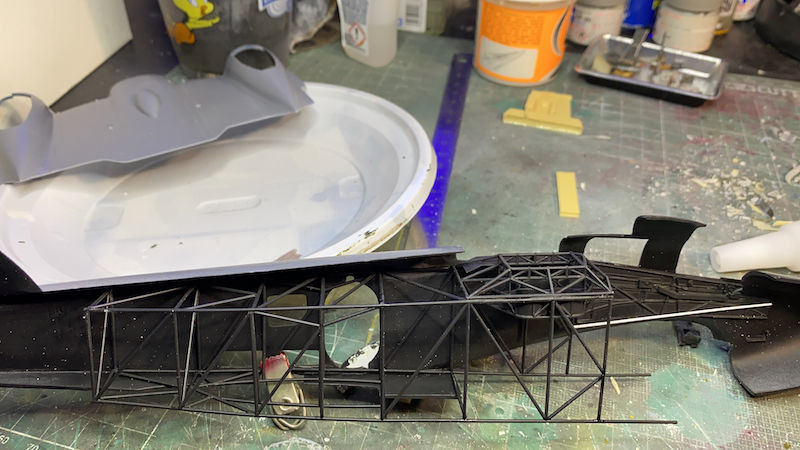

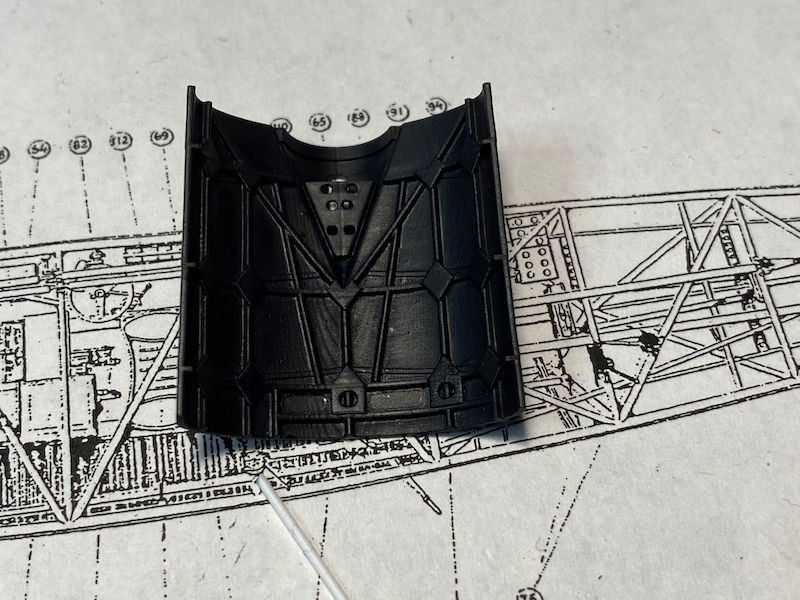

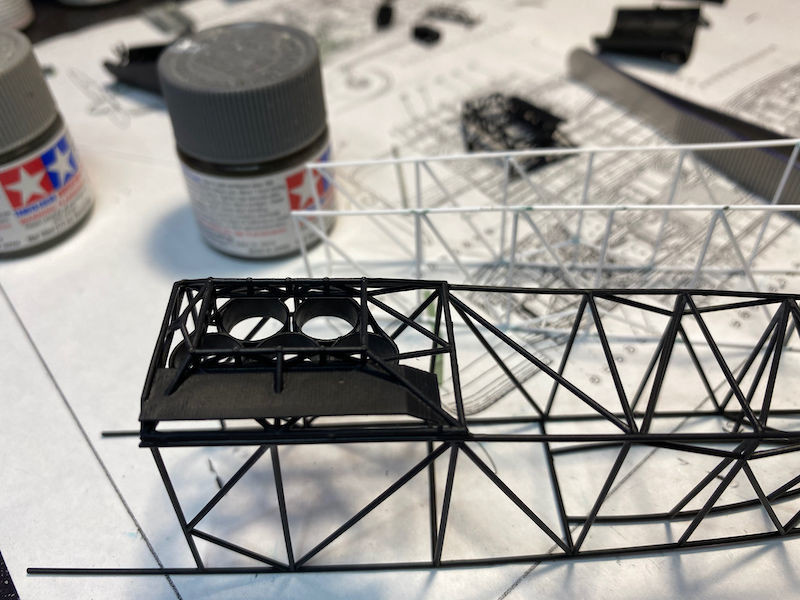

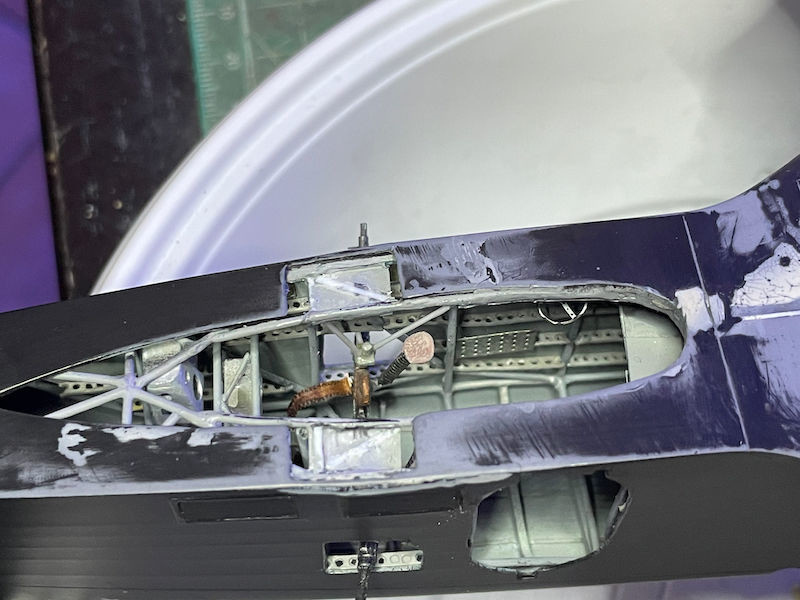

using the scale drawings I proceeded to build all the internal bones and the upper structure

















ok enough for now ....stay tuned!

[Vincent Fiore]

Fantastic amazing, your work leaves me speechless. Can not wait to see the completed build.

[Icepol]

Thank's Vincent!

[Icepol]

Hello everyone!
Today another small step: The pointer gondola and machine gunner

First of all, I mark where the pointer's 'boots' go and I rebuild them with plastic of the appropriate shape





then I begin to detail the internal part with plastic and copper profiles and with leftover incisions

[davenport49]

This is amazing work! I am really glad you're sharing the process.

[Icepol]

Very well, today another work progress:

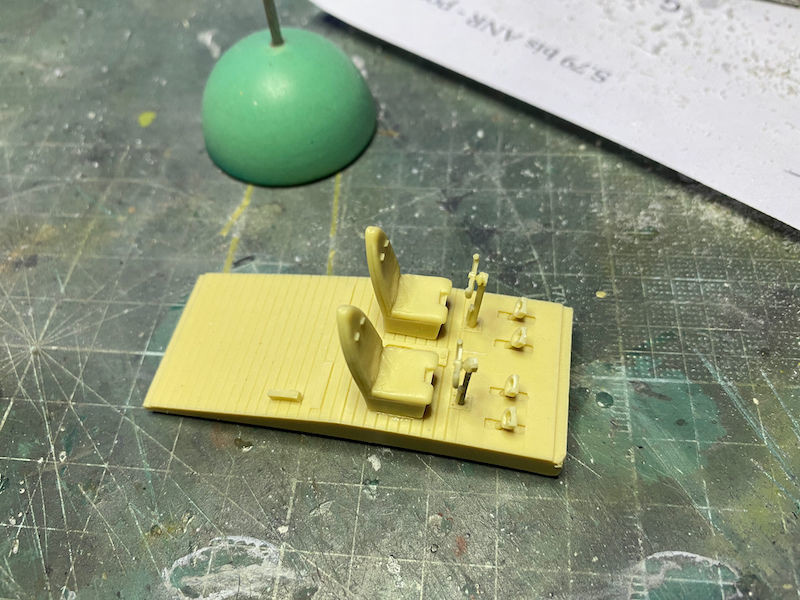

assembly of the cockpit resins





addition of furnishings





slightly oversized oil tank

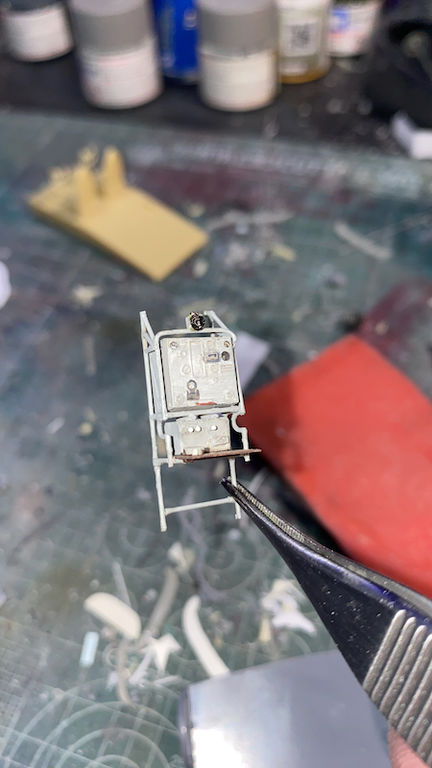

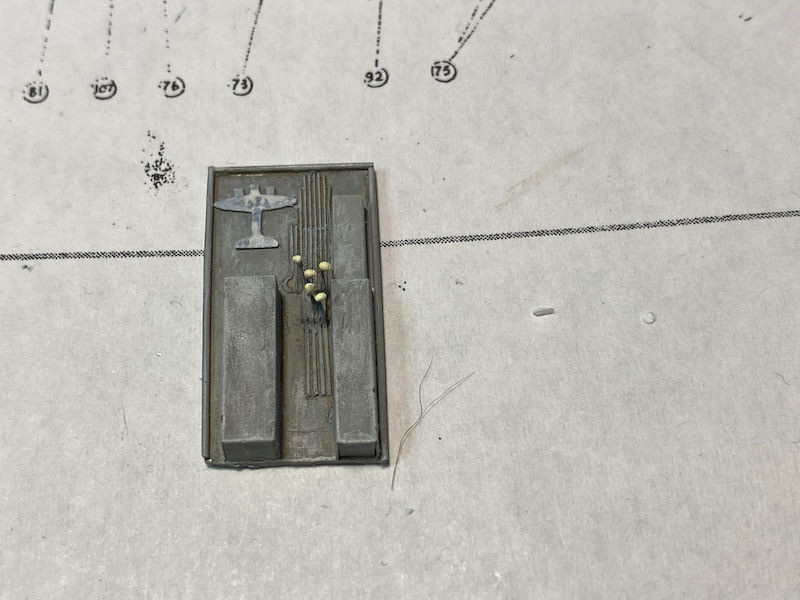

the on-board radio I have to repaint

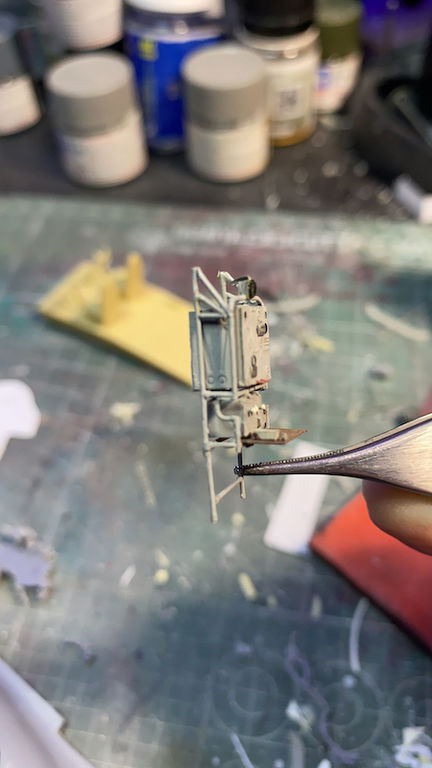

Scratch construction of the 'typewriter' with the lid down and the cable guide for launching bombs







One of hundreds of dry tests ...

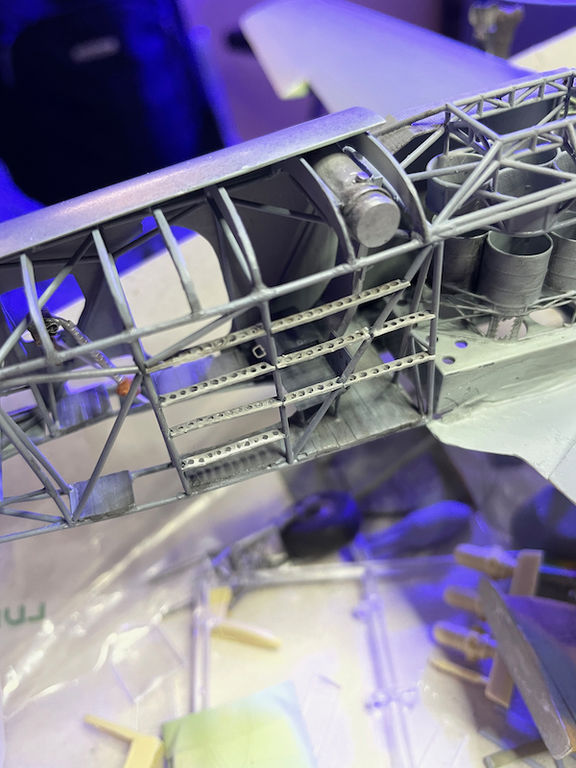

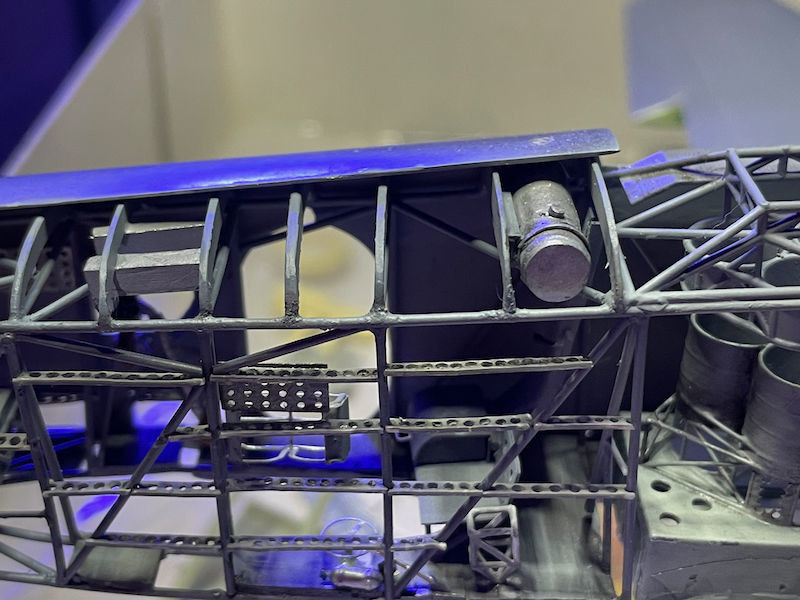

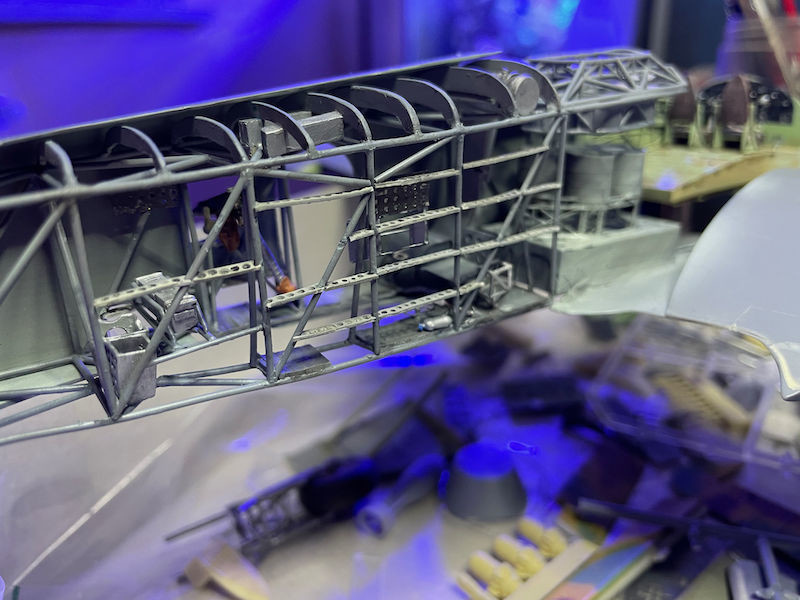

creation of the perforated ribs and positioning ... in this regard I say that I only put them in the visible points because the work is long and tedious to do









that's all for today!

[Vincent Fiore]

I would say the whole build is long and tedious, but you are to be congratulated to undertake such a task. Beautifully done. Looking forward to the next installment.

[davenport49]

Good grief!!!! Amazing!

[Icepol]

Hi!

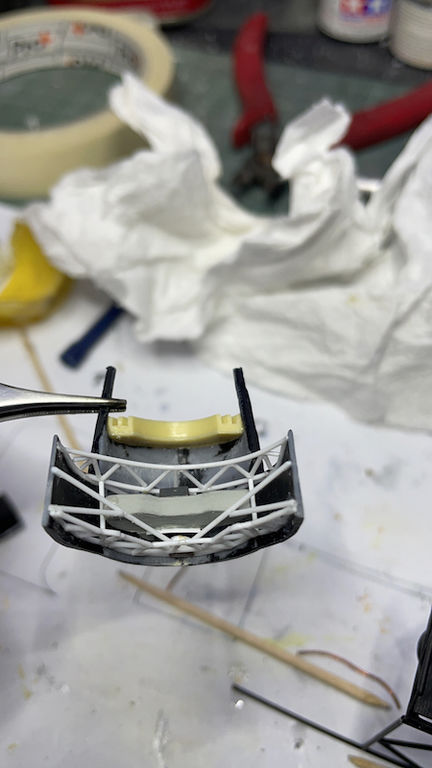

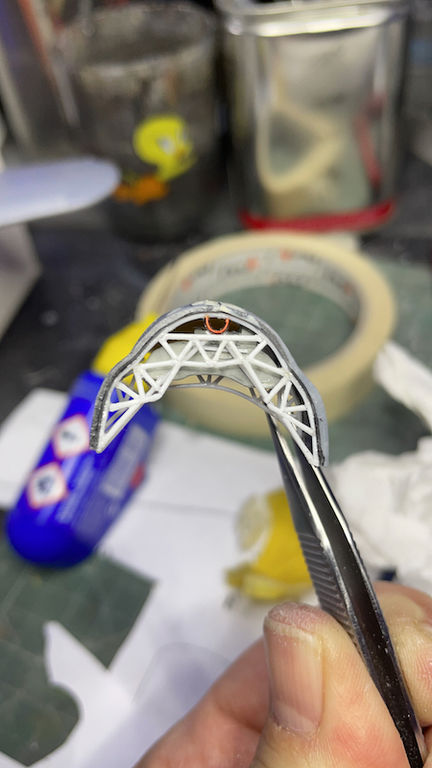

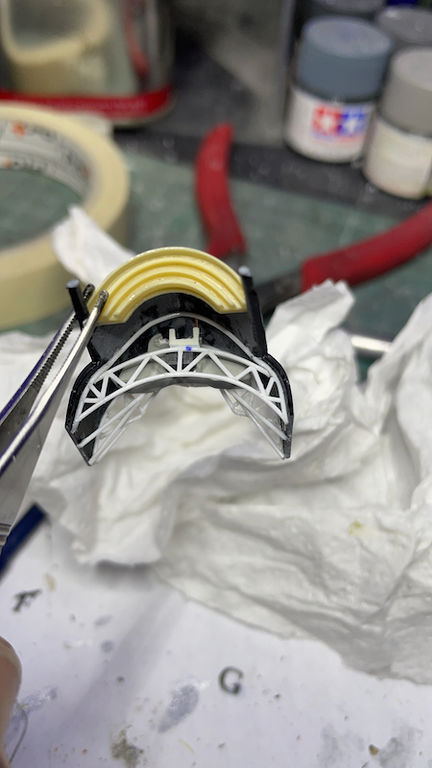

Today we go ahead with the work and build the backbone of the 'hump'.

At first I thought about building a plastic template and then putting the trellis together......







......but as you can see the work is mediocre and impossible to complete because the structure is divided into two parts and the second is not reachable and can be positioned with the fuselage closed

after thinking about how to proceed I decided to glue the hump and then saw it off the fuselage! The result was excellent, I was able to work on it almost comfortably and everything went smoothly











also built the ammunition box for the weapon in hunting





Addition of the Breda

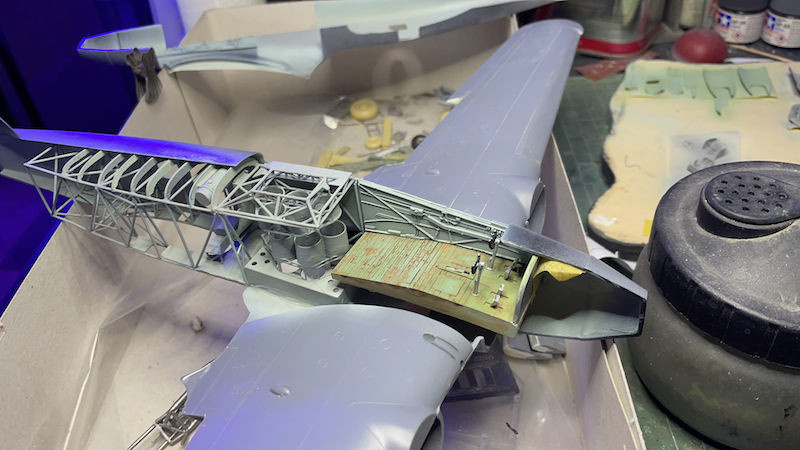

At this point I switched to the wings which have been heavily modified ....

First I opened the bomb bay

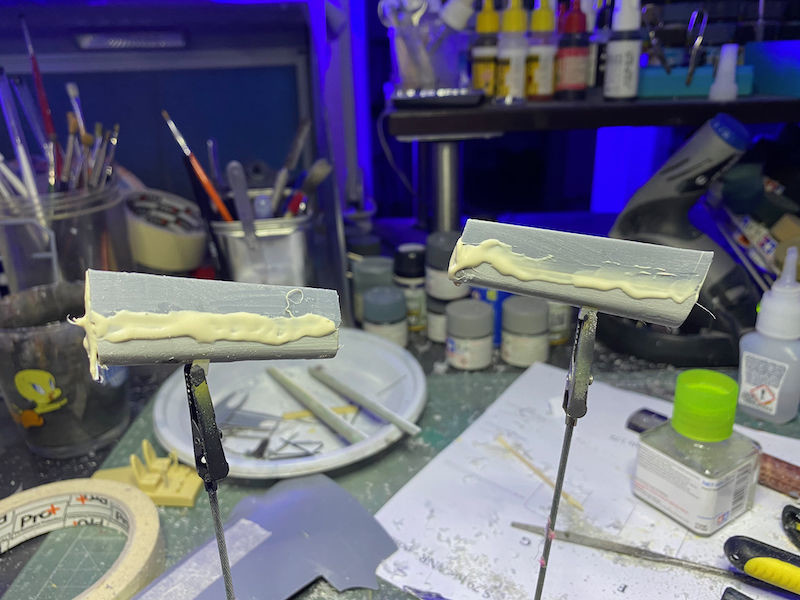

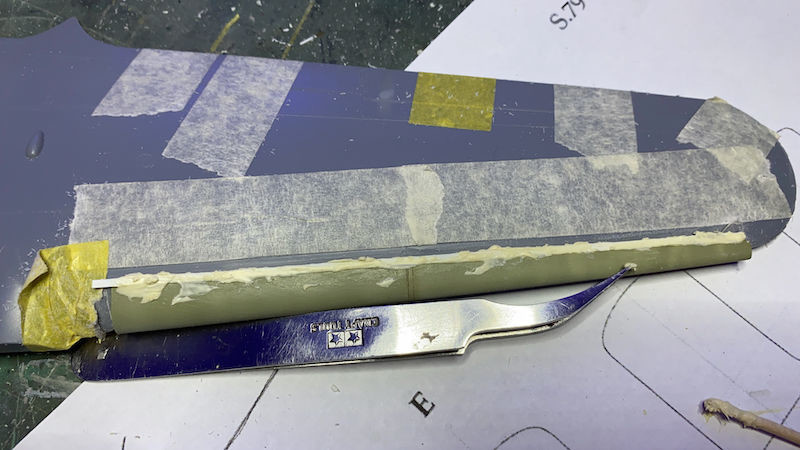

then I separated the flaps to show them lowered

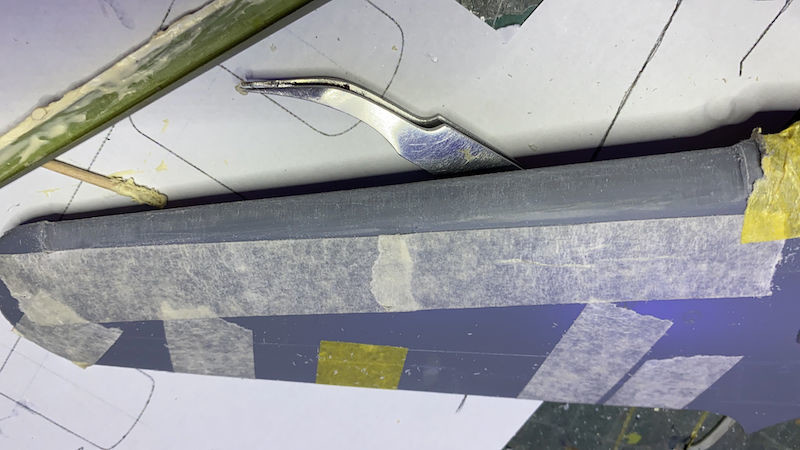

and I worked on the slats to have them open too










Lastly, I also worked on the engine nacelles and the related trolley compartment

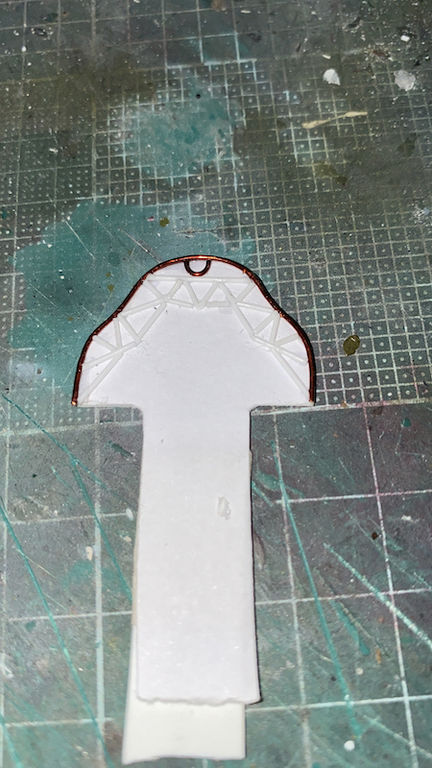

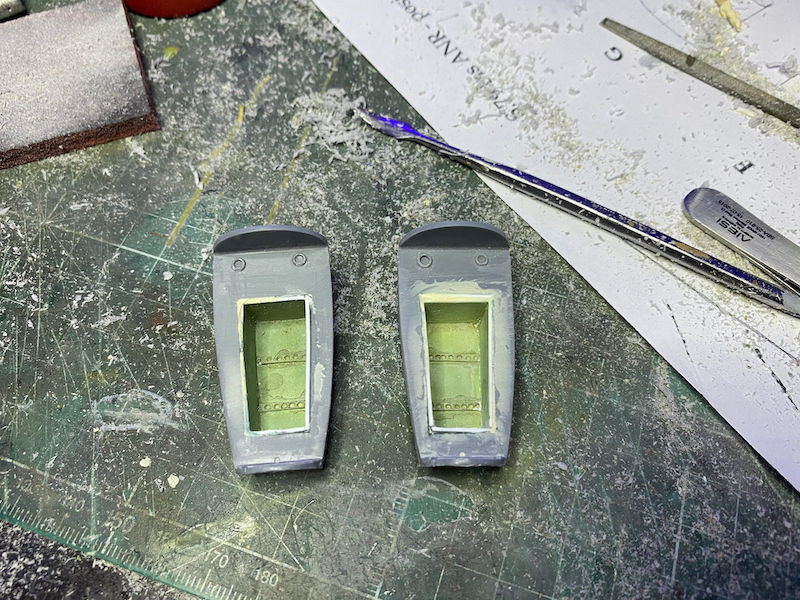

First I built the housings for the wheels




after gluing them I detailed the inside of the trolley compartment

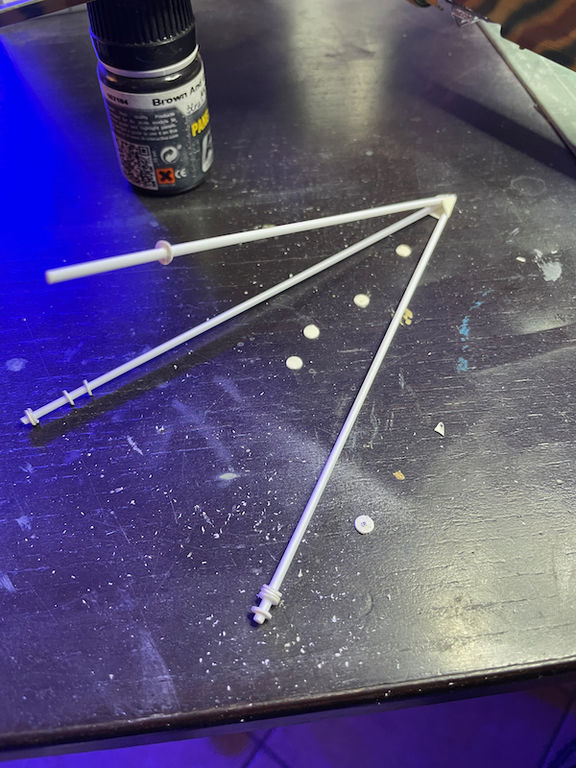

I completely redone the structure of the trolleys as after the modifications those of the kit no longer went well



Glued the wings I drilled the holes for the oil coolers both above and on the leading edge because they are absent




for now it's all bye!!

[Icepol]

Hello everyone!

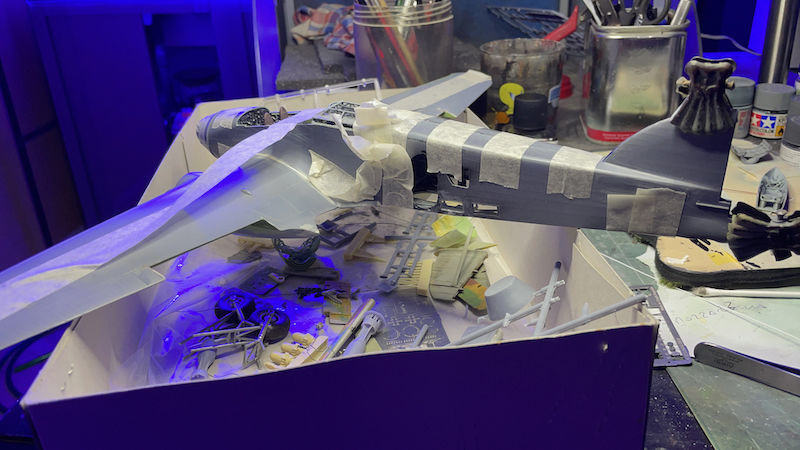

Today I post photos of the fully assembled aircraft. Being a short run I expected some problems, and indeed .....

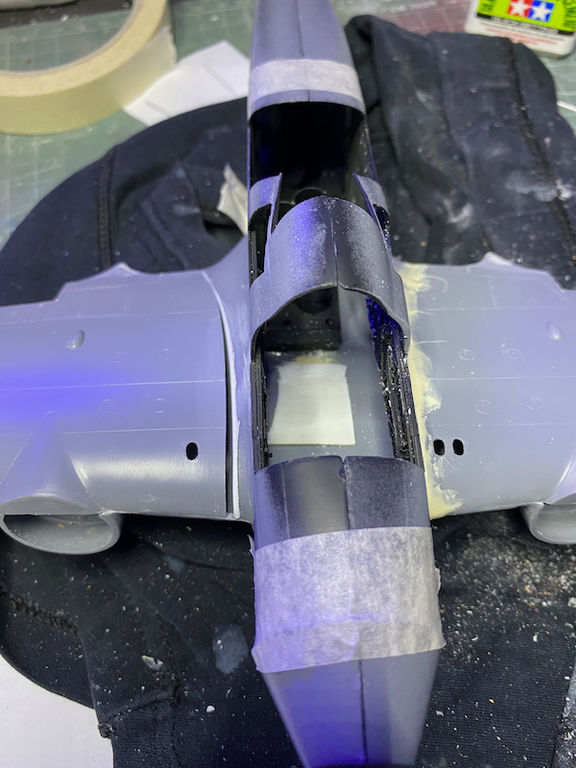

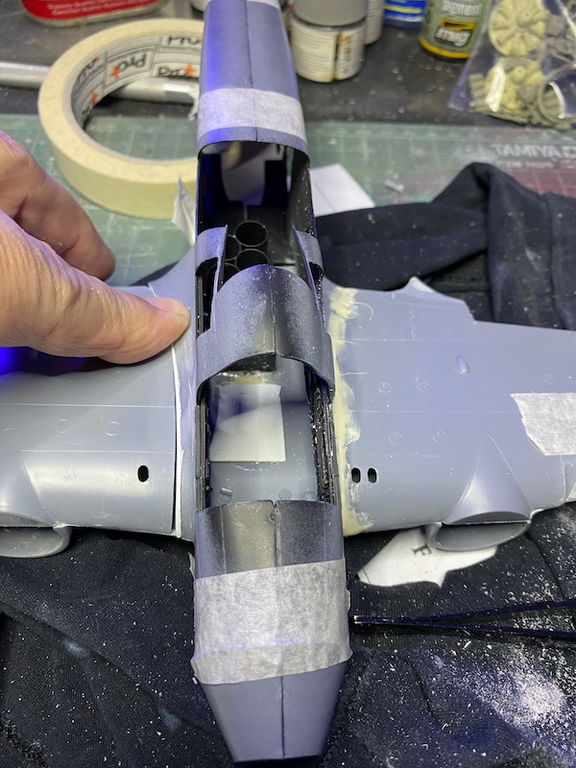

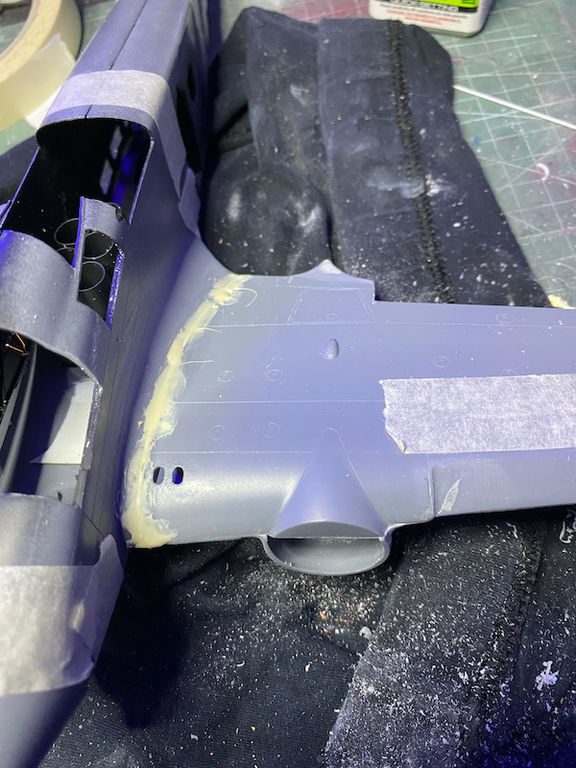

the closing of the fuselages which took a lot of time to putty and cyanoacrylate !!!

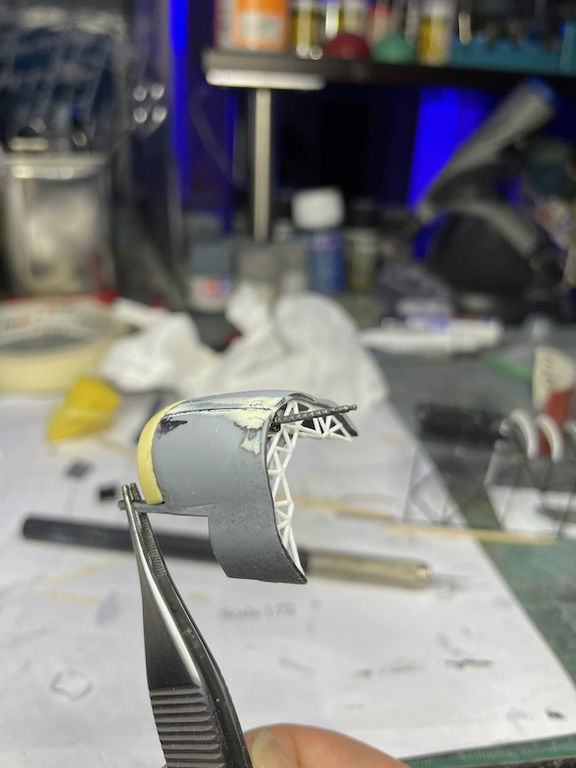

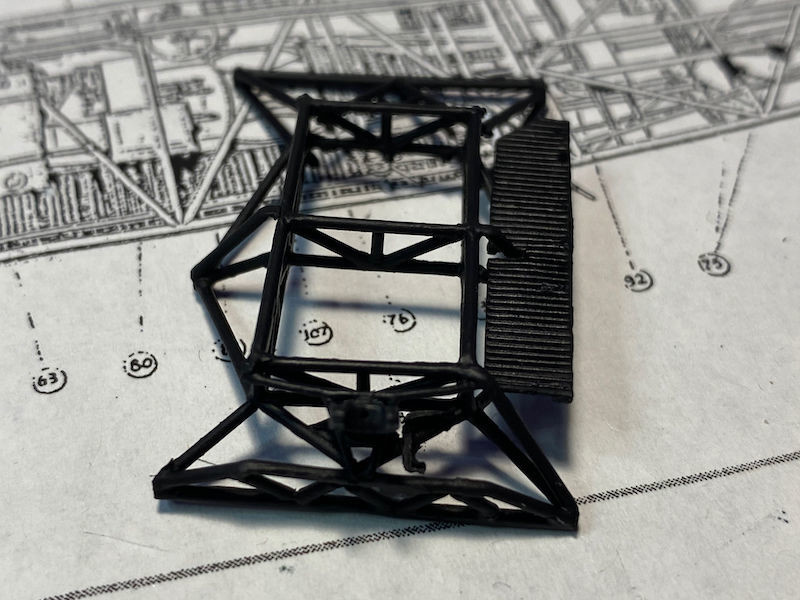

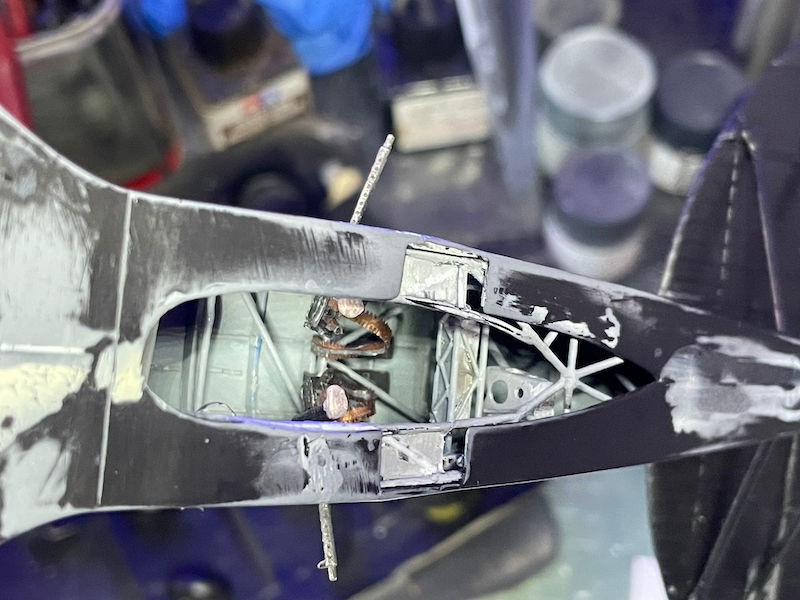

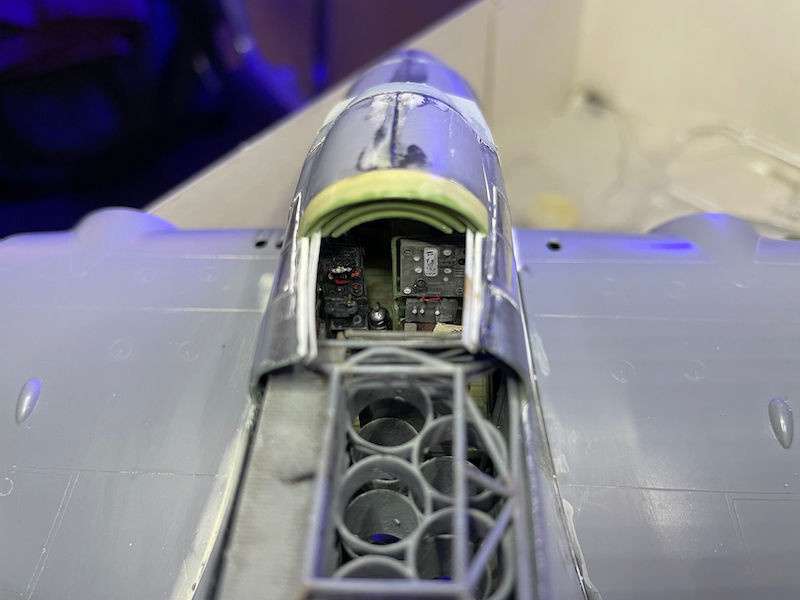

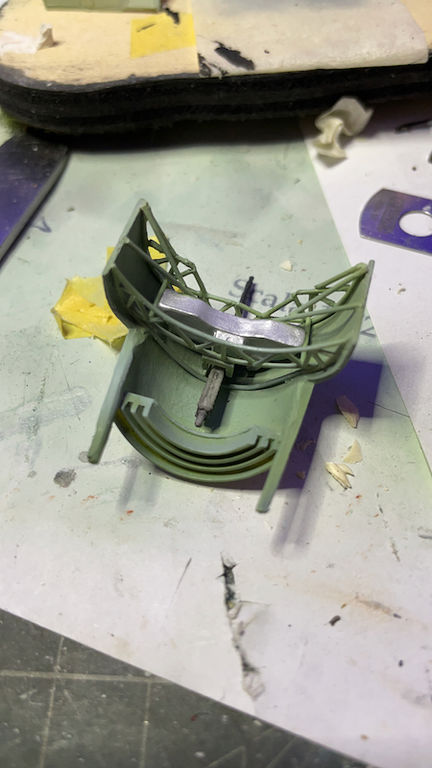

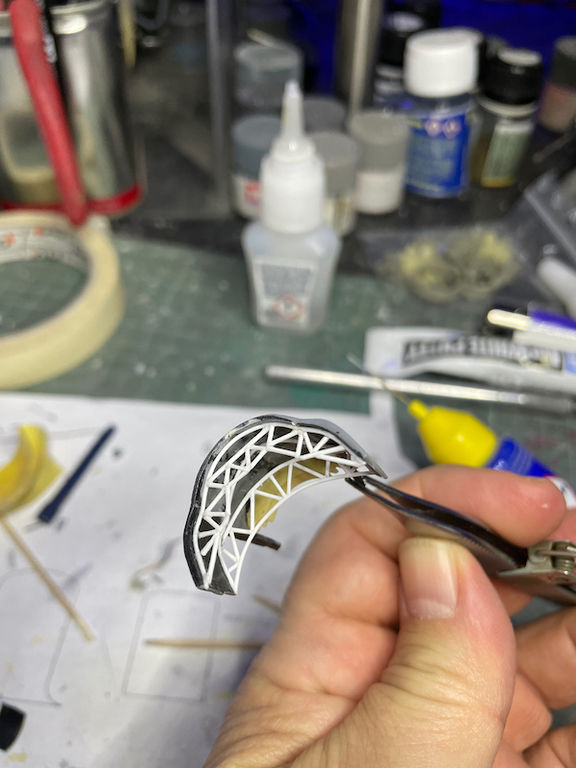

Internal structure of the 'hump' finished and ready to be positioned

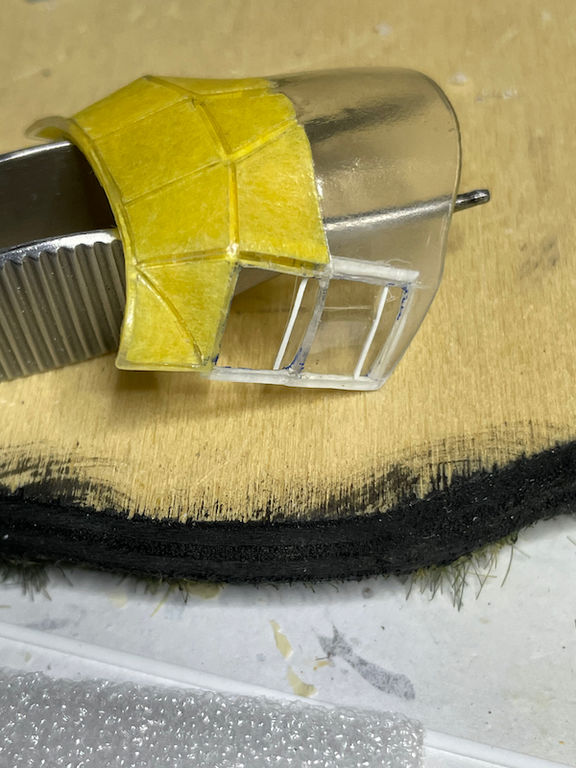

create the guides for the tiles







built supports and all accessories for sidearms











Pilot window open





positioned the gondola of the pointer / gunner

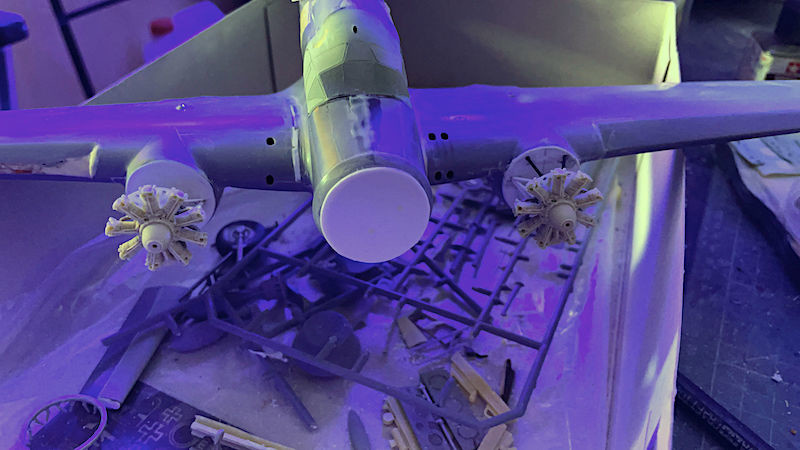

I bought the beautiful Italian Kits engines as an aftermarket
They are really well made and complete with exhaust manifold and carburetor so I decided to keep two on sight














Very well, now another coat of putty and then I get ready for the painting phase....bye!

[Vincent Fiore]

You have completed a great amount of great work in a short time, congratulations. looking forward to seeing the completion of your great work.

[davenport49]

You have completed a great amount of great work in a short time, congratulations. looking forward to seeing the completion of your great work.

Ditto!

[Editor]

Attention to detail is outstanding.

[Icepol]

Hello everyone!

Today I publish the photos of the work done for the camouflage.
I would like to clarify that the photos of the original subject found on the various texts show only the side of the vehicle for which the upper camouflage is interpreted.

The colors used are:

Grigio azzurro chiaro: Gunze H332
Verde Mimetico 1: MRP 328
Marrone mimetico 2: Mig 0079
Giallo mimetico 3: MRP 323

Ok let's go

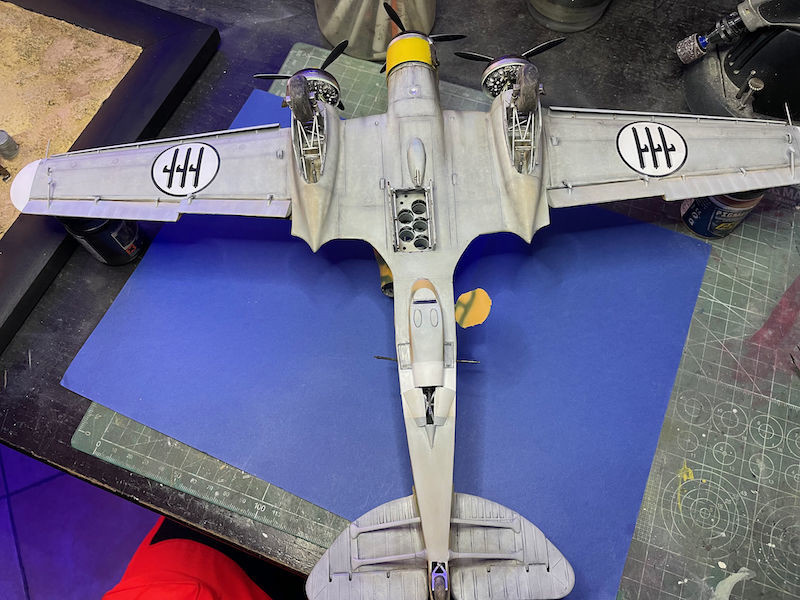

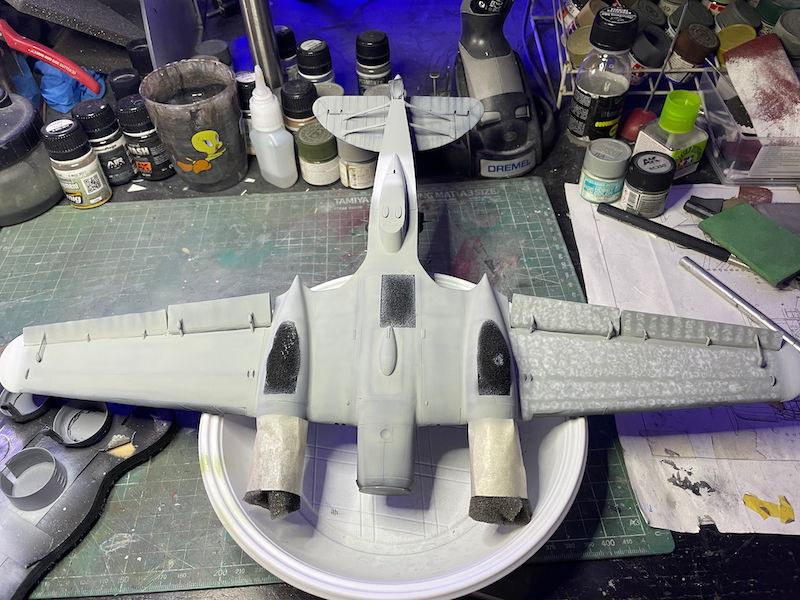

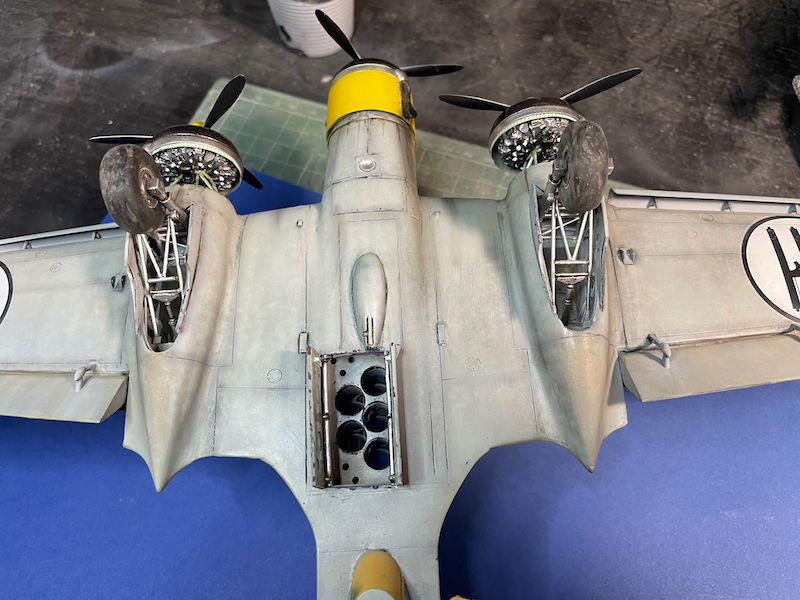

After having applied the gray I proceeded to apply a marbled effect









I hope you see the 'marbled' effect from life in the picture is ok

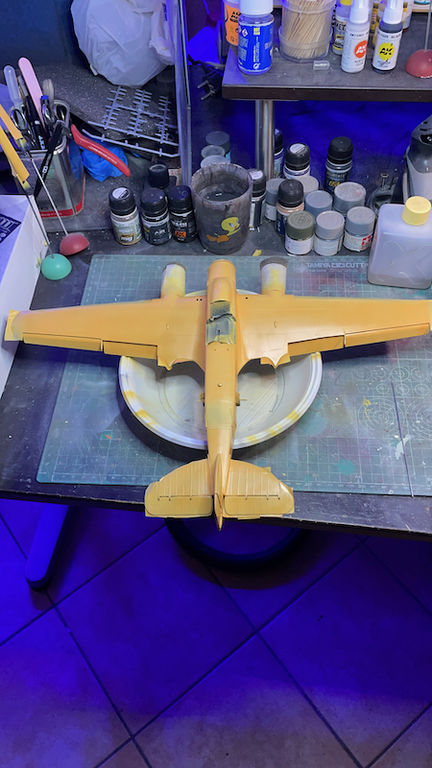

applied camouflage yellow 3 and colored the wing tips and the fuselage strip in white

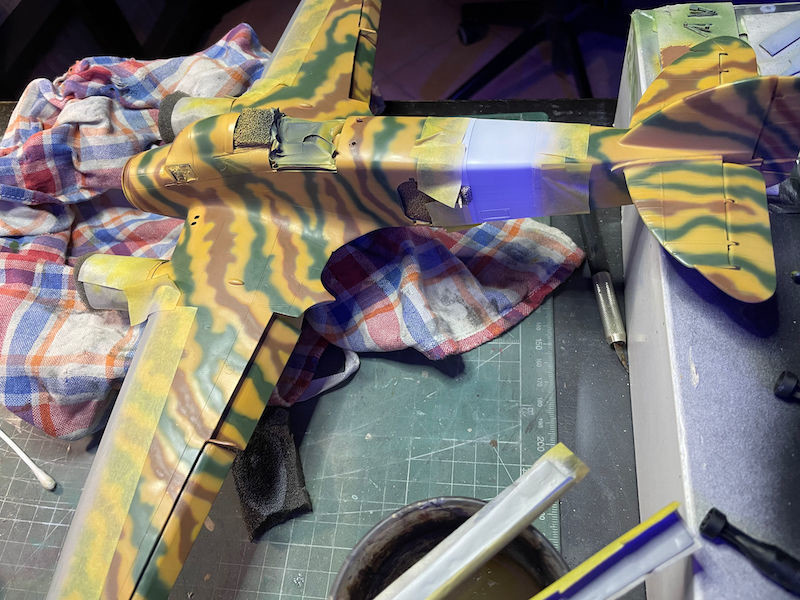

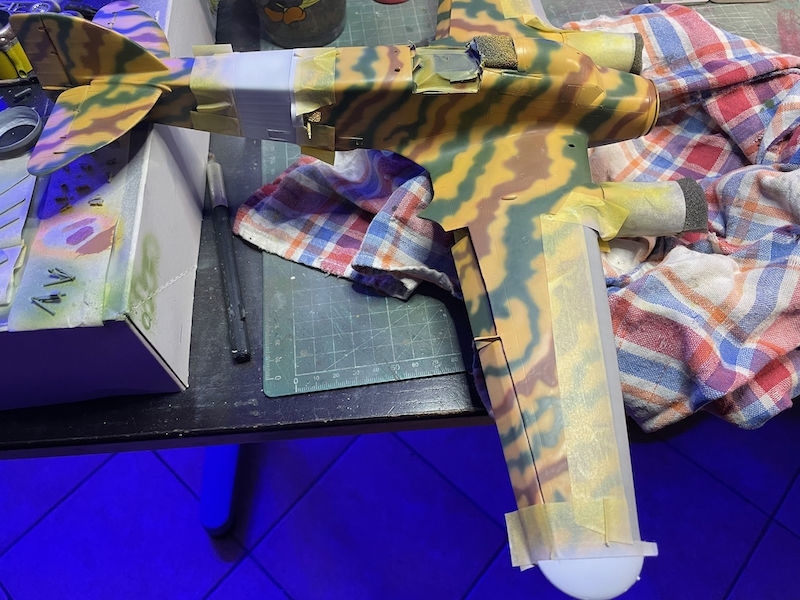

Green and brown

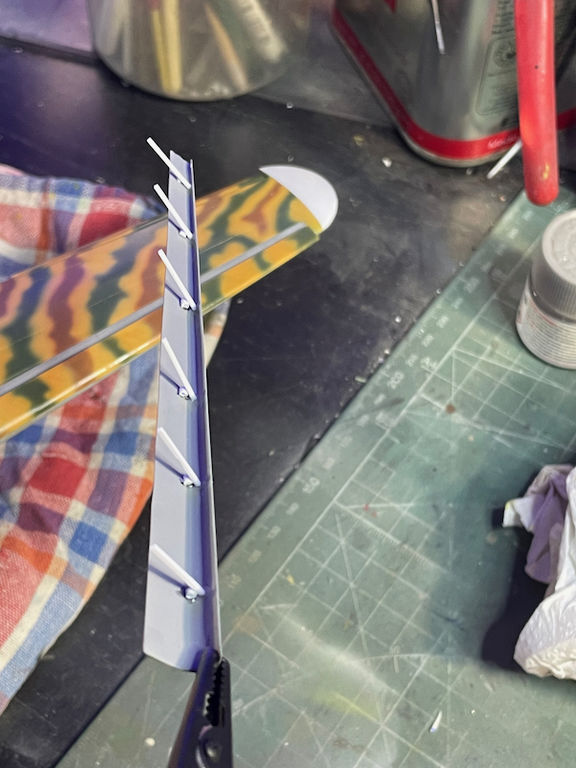

put the pins of the slats ... some are crooked but with a little viagra they will come back pretty straight

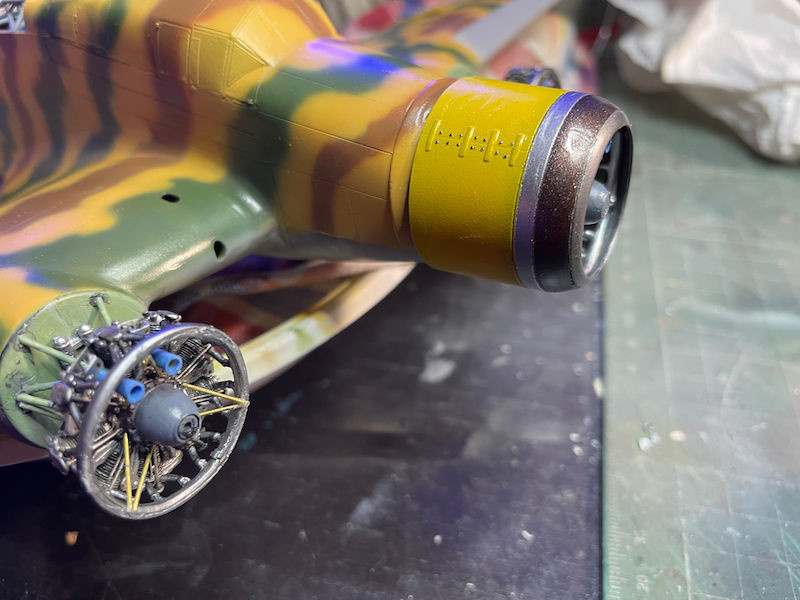

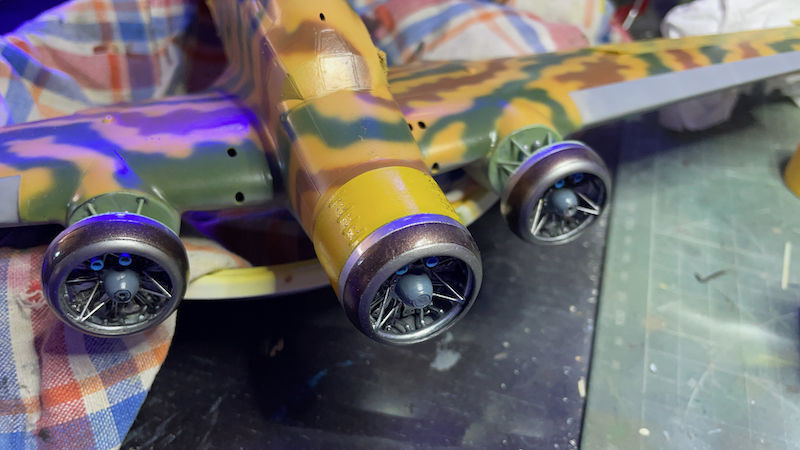

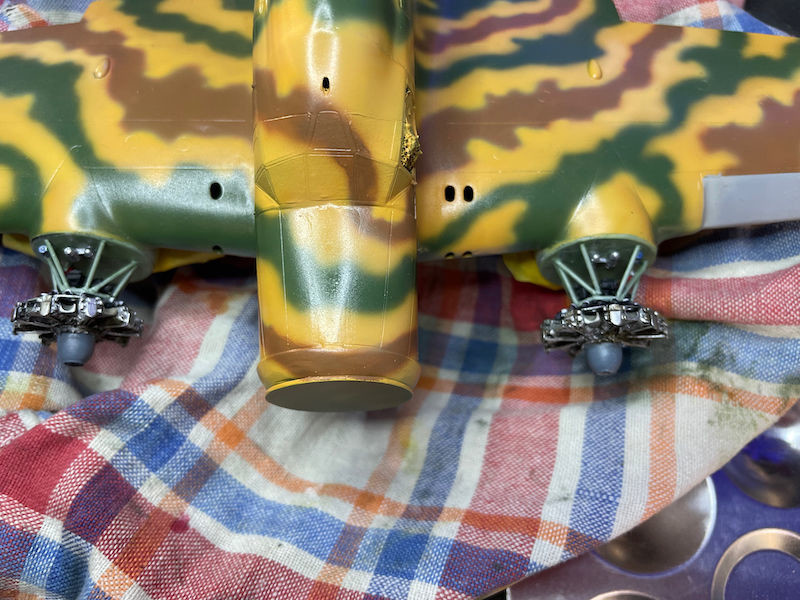

positioned the engines

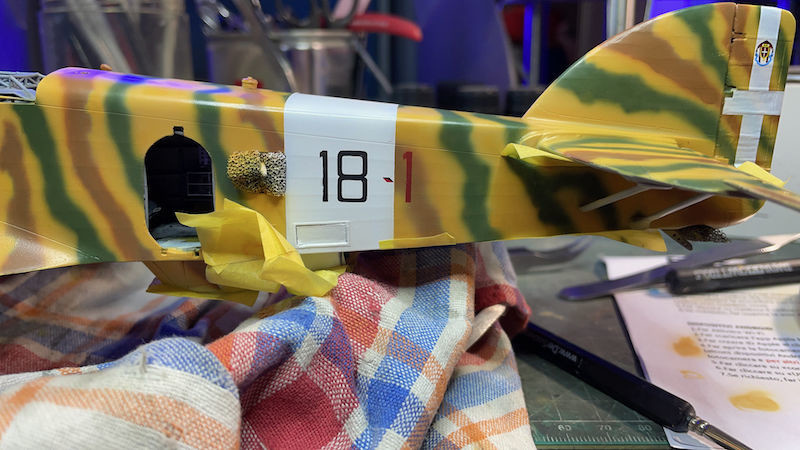

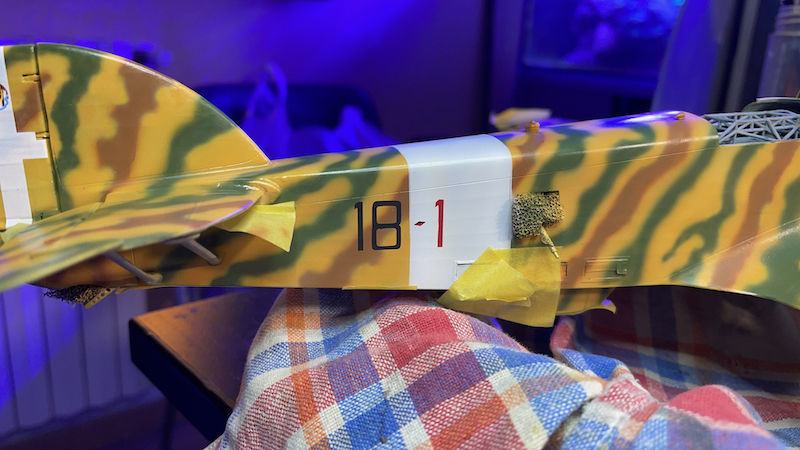

create the masks for the department codes

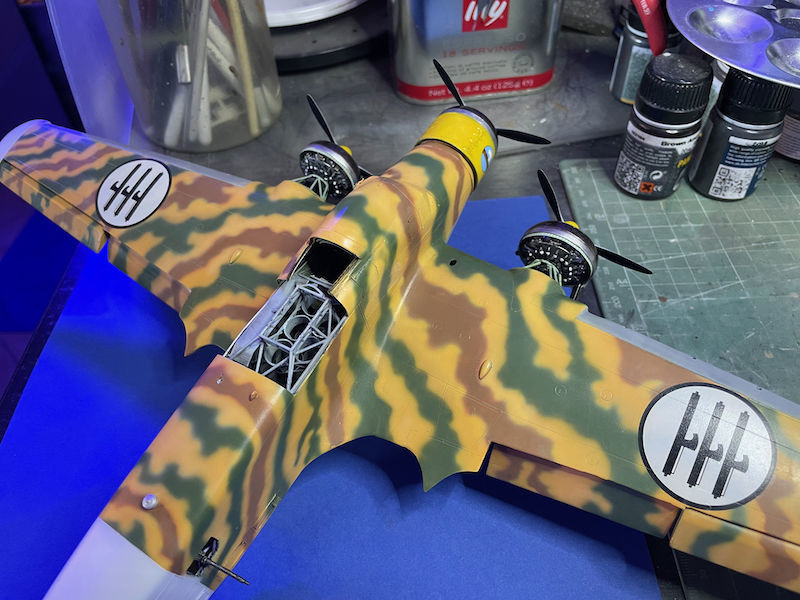

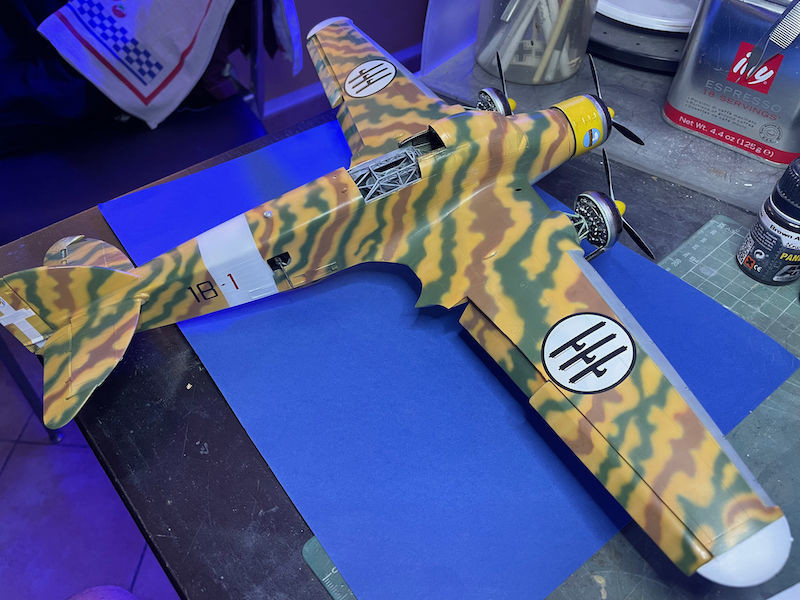

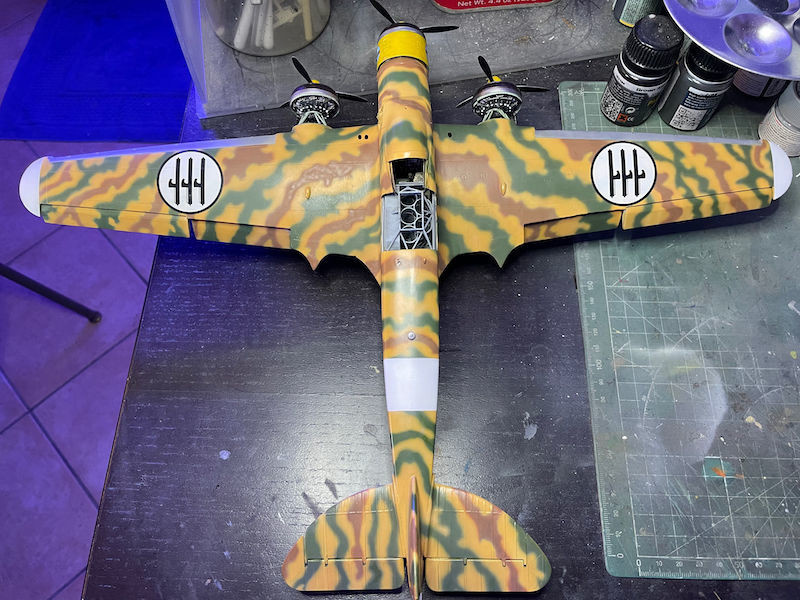

place the few decals











Landing gear has also been added

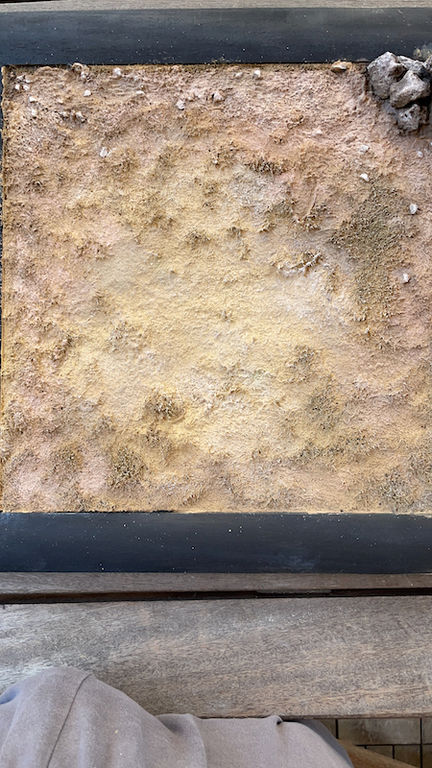

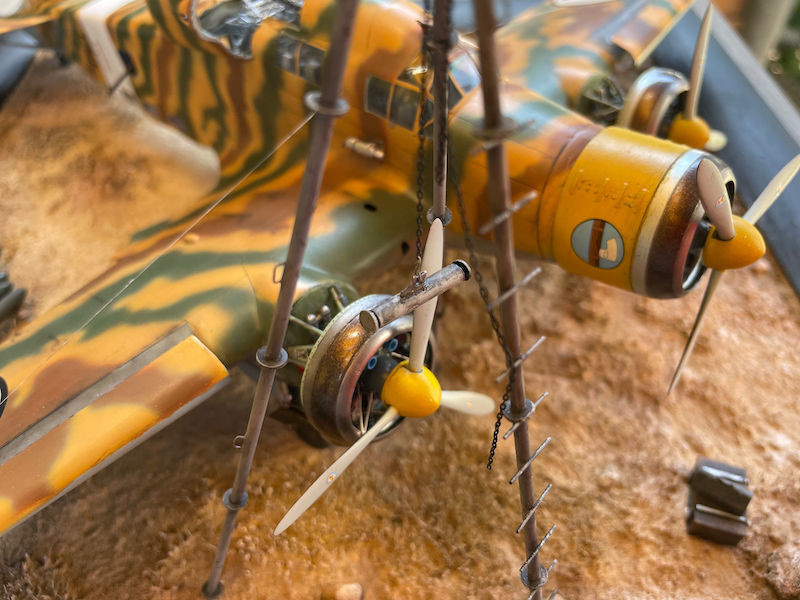

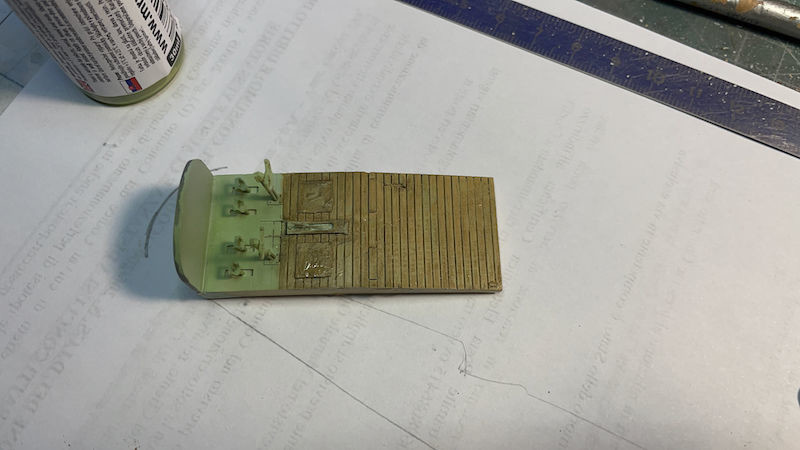

prepared the ground on which the plane will be positioned and built in scratch the field crane to lift the engines

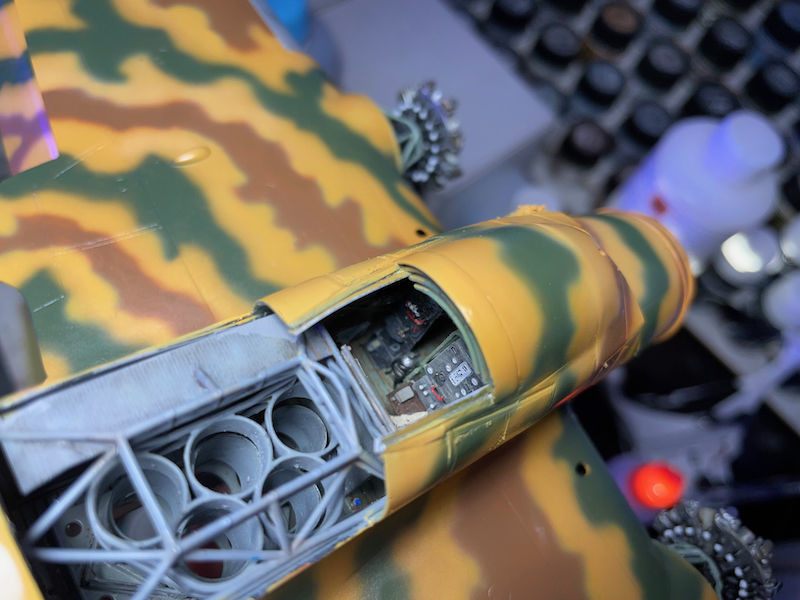

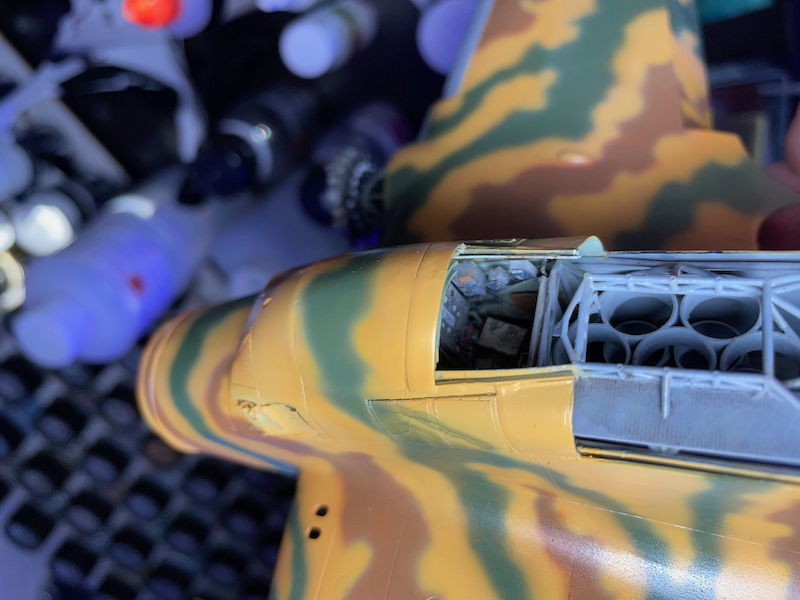

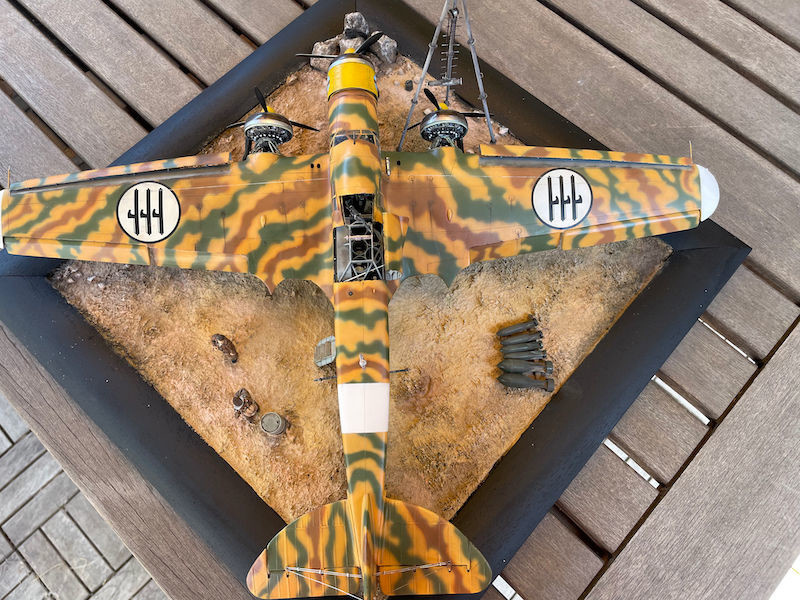

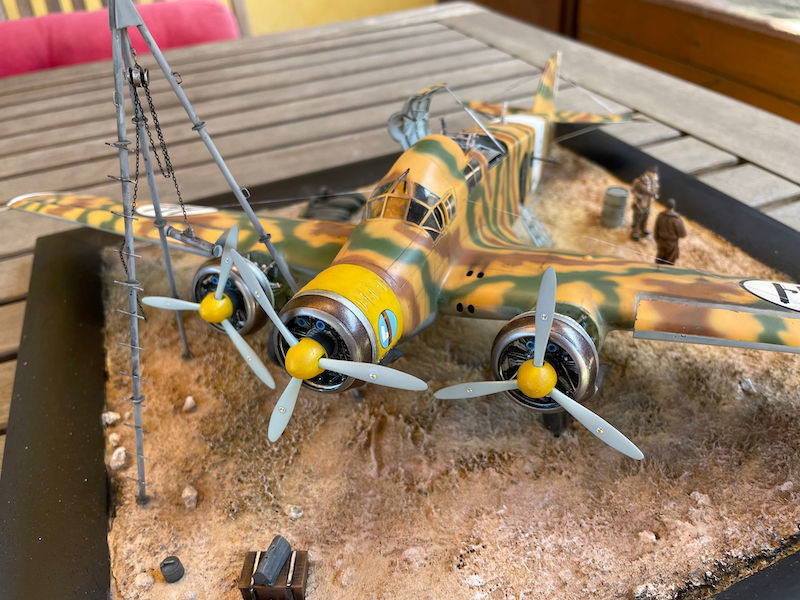

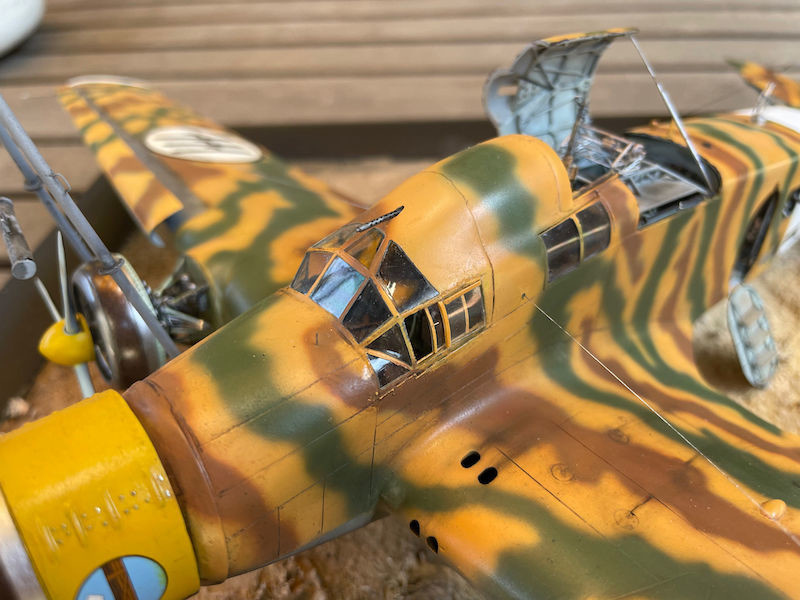

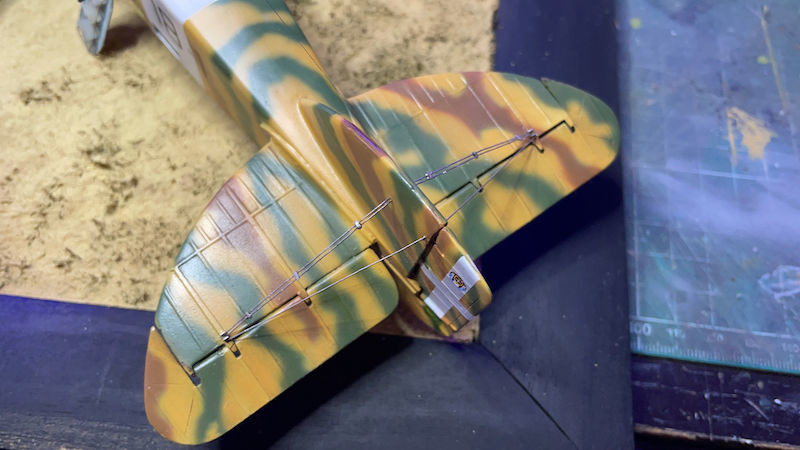

now some shots with the plane positioned on the base

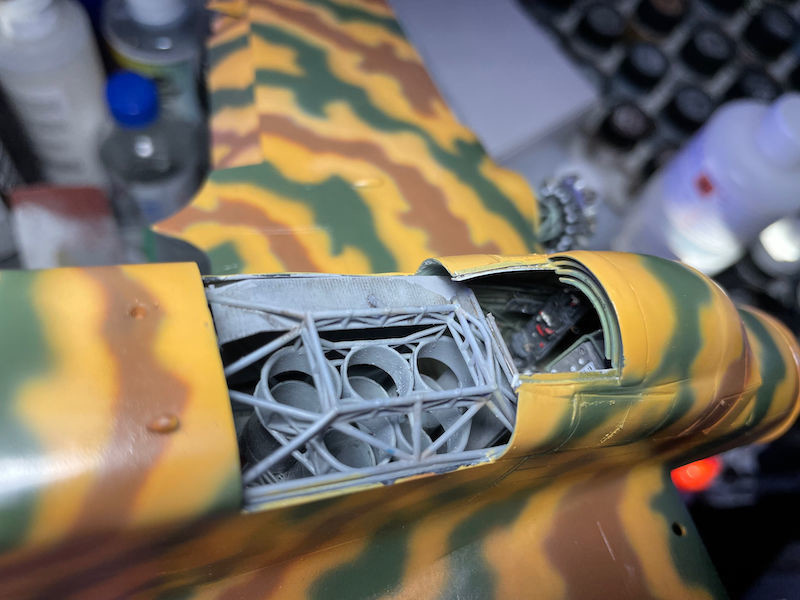

In real life, all the details can be seen perfectly, such as the addition of the map on the radio operator's table
the detail obtained is truly remarkable .... I'm happy with the result

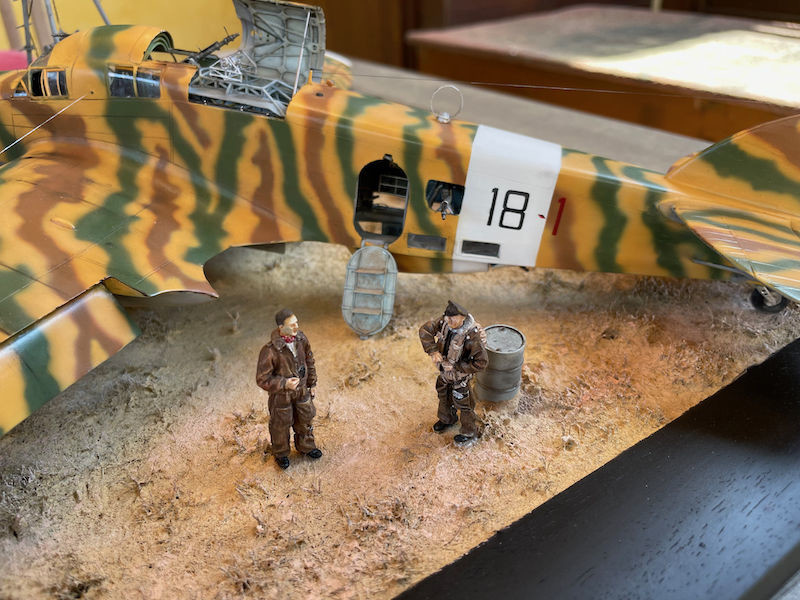

I painted a couple of pilots to animate the scene








I realized at the last moment that the black frame 'tightens' the vision too much so tomorrow I will publish the final shots with the modification of this detail.

I hope I have not bored anyone with all these photos but the work done was really a lot and I could not put less ...

thank's
